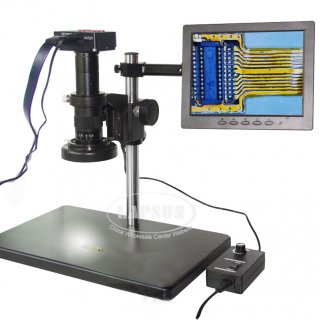

6745T Simul-Focal Stereo Microscope Set with Sony IMX385 HDMI HD WDR Industry C-Mount Video Camera 10.1" IPS V2 Monitor

6745T Simul-Focal Stereo Microscope Set with Sony IMX385 HDMI HD WDR Industry C-Mount Video Camera 10.1" IPS V2 Monitor


  • Description
  • Reviews
  • Shipping & Returns

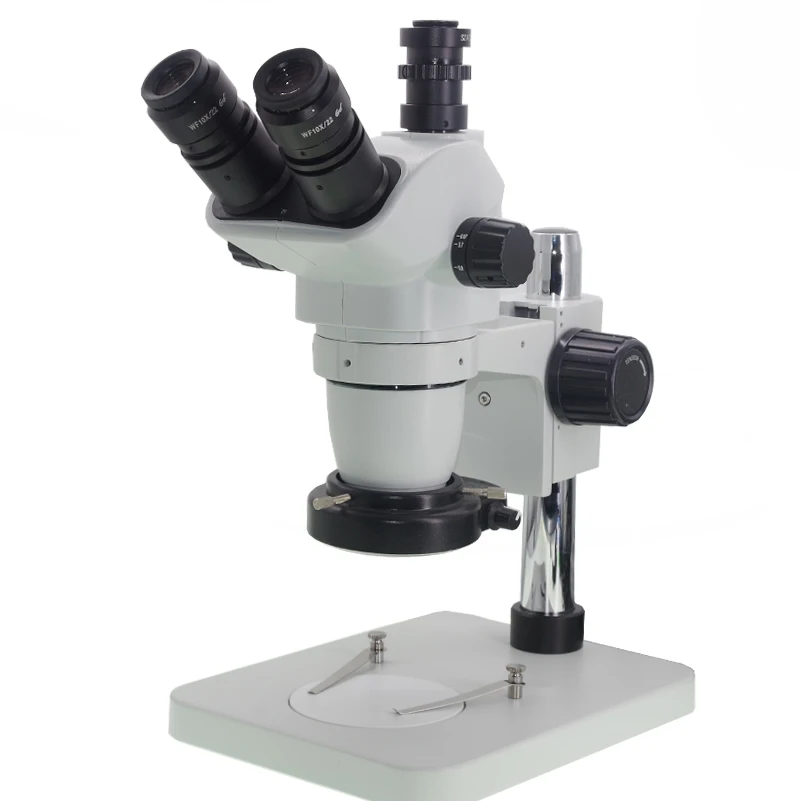

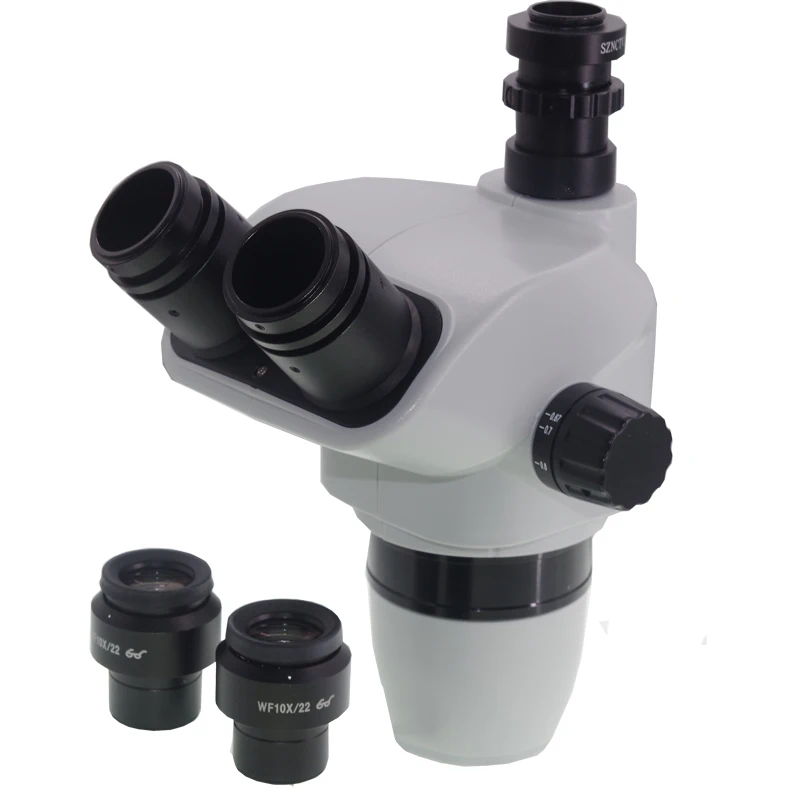

ST6745 Wide-Field Simul-Focal Trinocular Microscope Head 6.7X-45X Confocal Zoom WF10X/22 Wide View Lab Stereo Microscope + Long Arm Heavy Duty Boom Large Stereo Clamp Table Stand + SONY IMX385 Sensor 1080P@60FPS HDMI Industrial Digital Camera

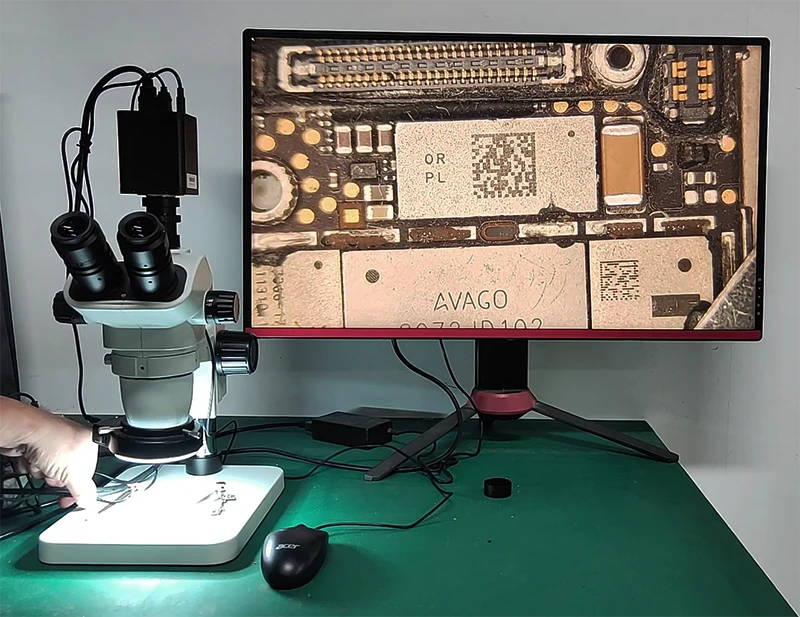

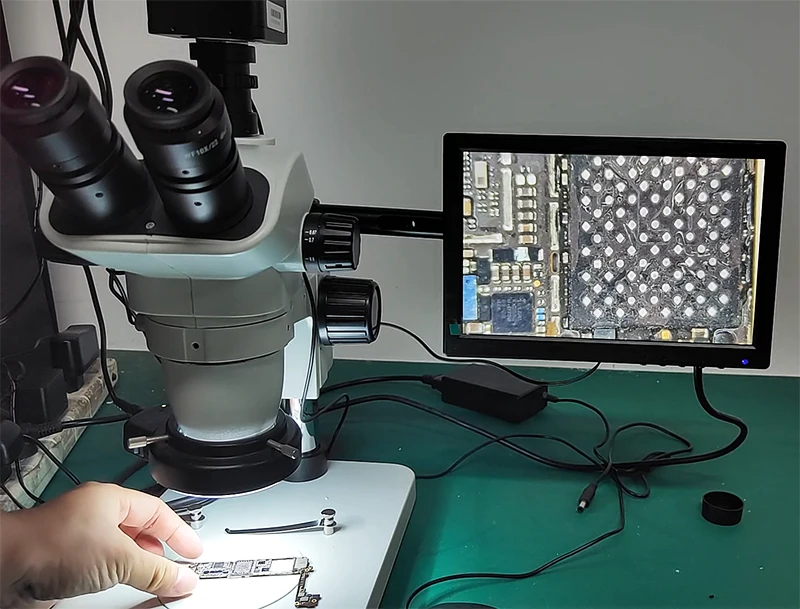

  This precision instrument is a high quality Simul-focal 6.7X-45X trinocular stereo zoom microscope, and features extreme widefield optics,With 144 LED Ring light, and a convenient track stand for easy focusing. Optically, the large zoom magnification range of 6.7x-45x maintains focus at a 105mm working distance. This confocal feature provides ample room for various sample sizes, and with its 360 degree swiveling head and 45 degree ocular tubes, the ultimate experience in comfort can be achieved to your liking. For illumination, a 144 LEDs Ring Light , providing ample lighting. These features all add up to a great microscope for industrial, educational, and professional applications for research labs, hospitals, schools, veterinary offices, and more.



  • 6.7X-45X Continuous trinocular confocal zoom magnification power
  • Extreme widefield optics offering crisp clear stereo images
  • Focusable extreme widefield eypieces
  • 105mm Working Distance with large 32.8mm field of view



  • A great microscope with erect sharp stereo images and low heat releasing
  • 6.7X-45X large confocal zoom range continuous magnification
  • 45 degree inclined 360 degree swiveling trinocular head with extreme widefield eyepieces
  • 32.8mm extreme widefield focus-adjustable eyepieces
  • High resolution with great depth and contrast
  • Crystal clear original true color images
  • Adjustable diopters on each ocular tube
  • Metal track stand finished with a stain resistant enamel
  • Accurate alignment ensures fatigue-free viewing
  • Full optical and precise ground glass elements
  • All metal mechanical components
  • Adjustable interpupillary distance
  • Manufactured under restrict ISO 9001 quality control system
  • Two (2) year manufacturer warranty
  • Eyepiece: 30mm extreme widefield focus-adjustable 10X/22
  • Objective: 0.67X-4.5X
  • Diopter Adjustment: +/-5dp
  • Interpupillary Distance: 2-0" - 2-15/16"(52-75mm)
  • Working Distance: 105mm

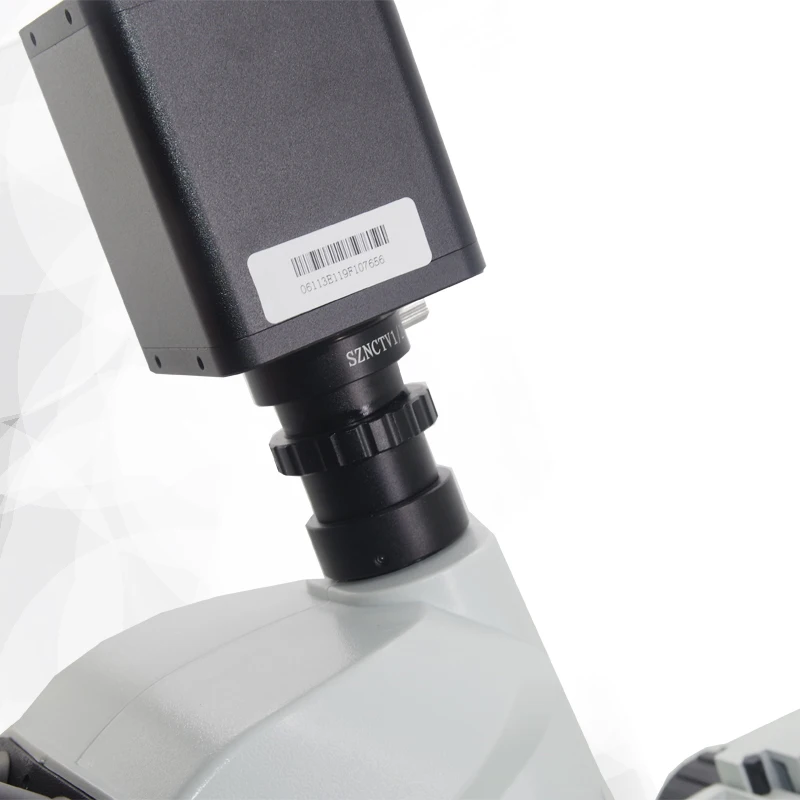

  • 0.5X CTV adatper for Trinocular port

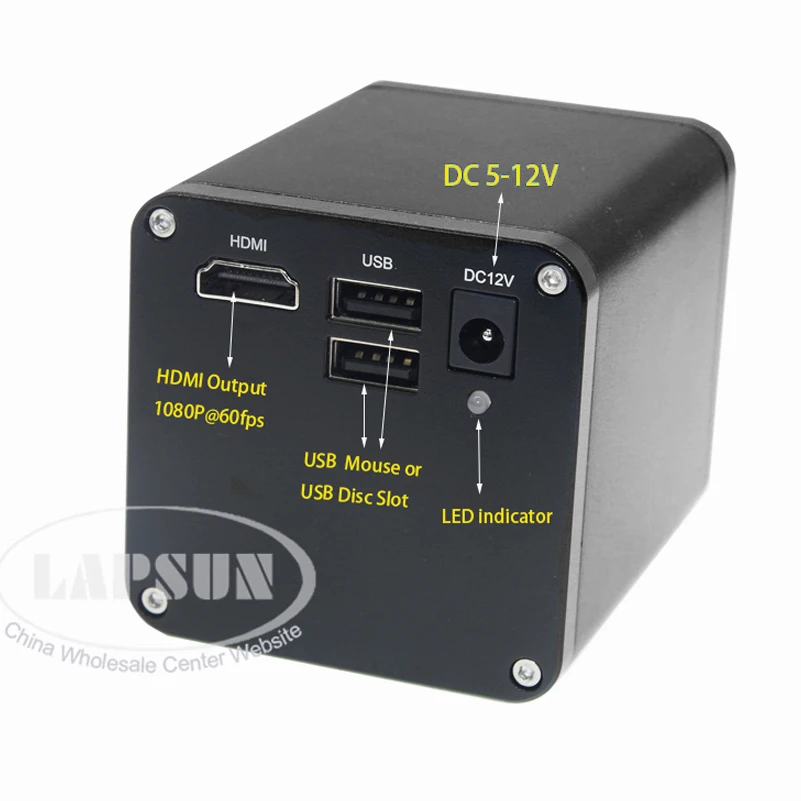

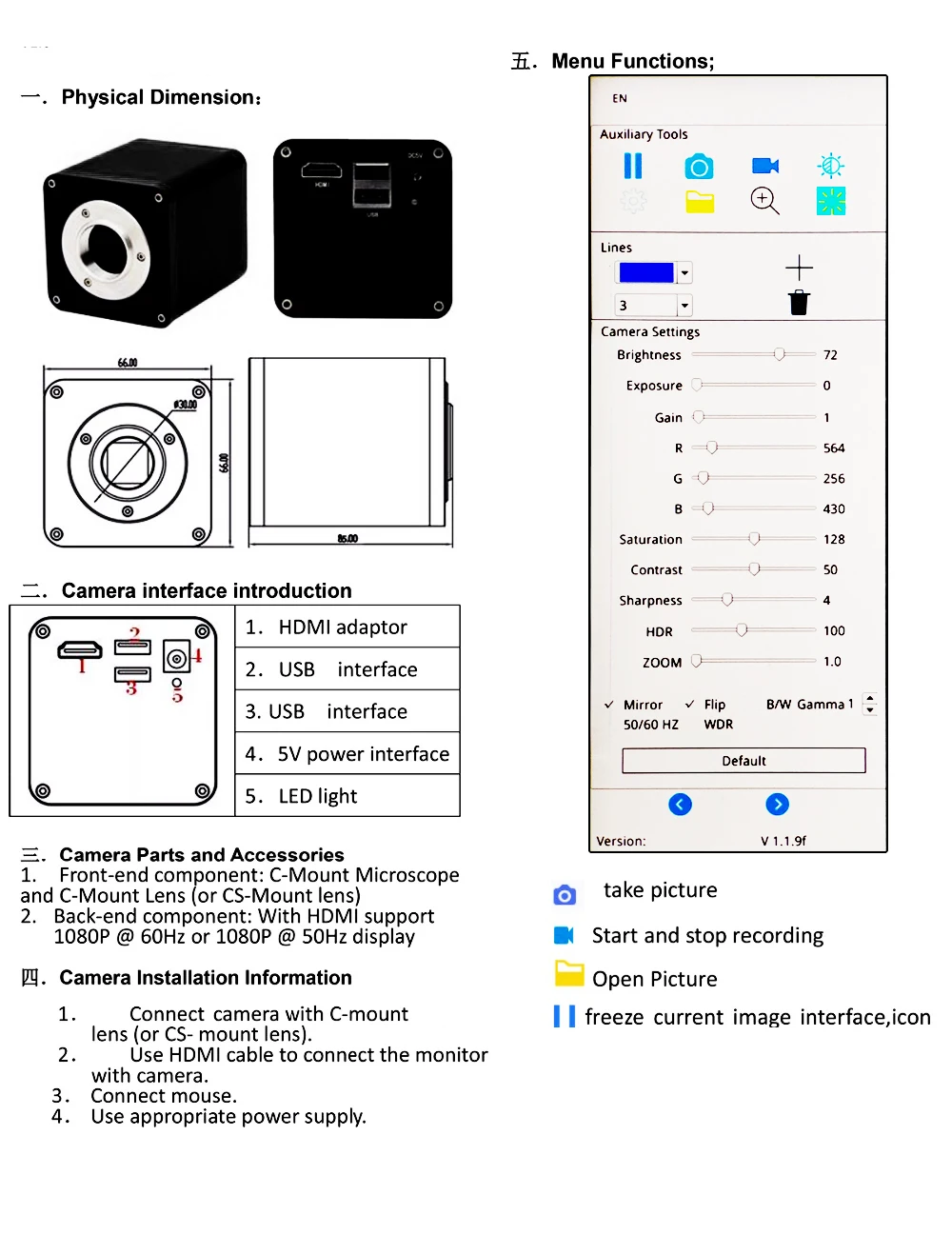

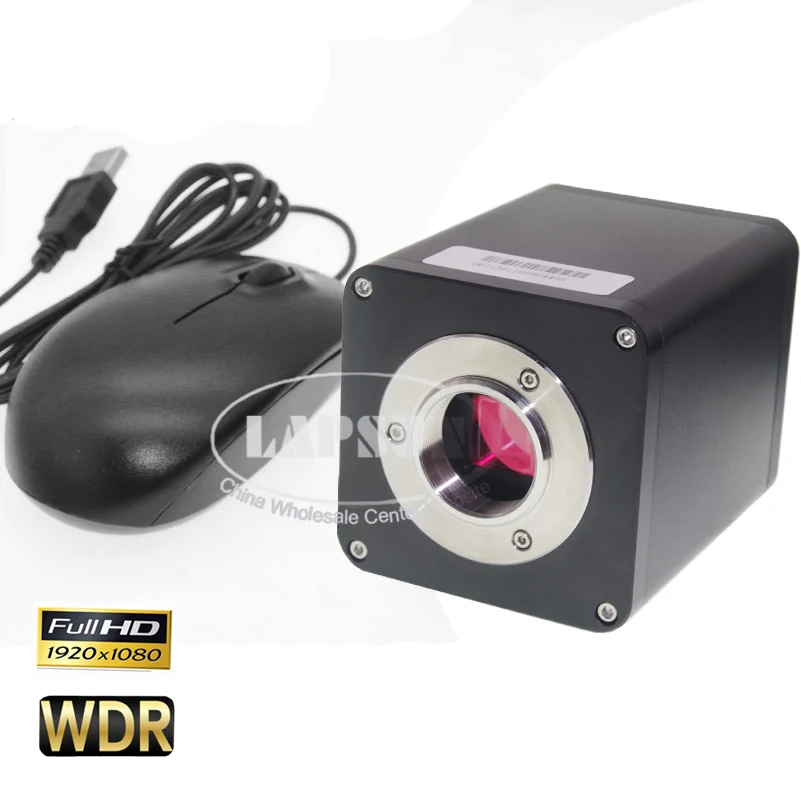

Digital Camera Feature:


  • High Quality, High Resolution, Clear Images
  • 1080P FULL HD 60FPS high speed camera
  • UI design menu, easy to control by mouse

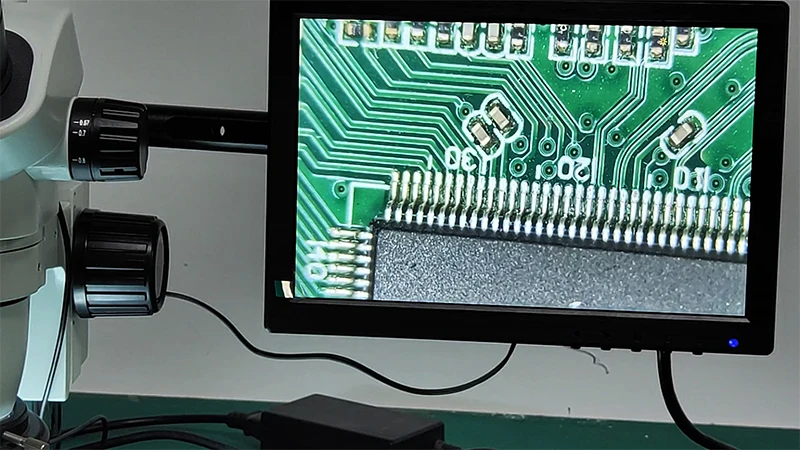

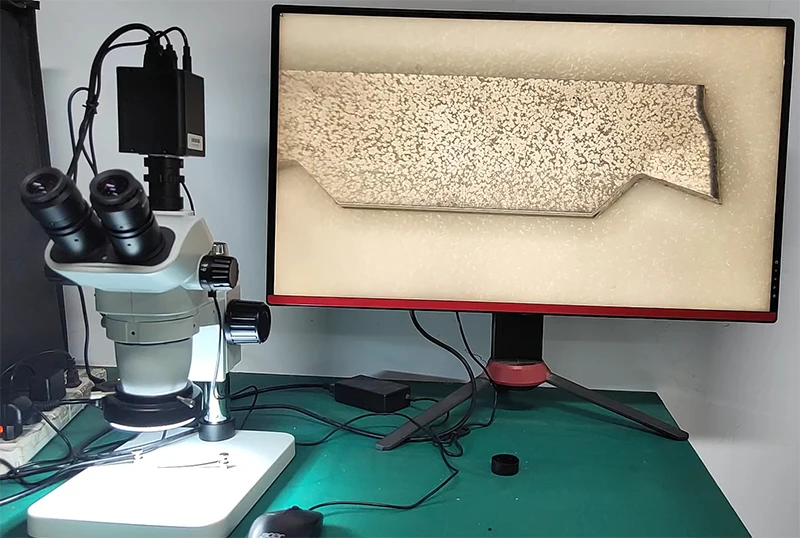

  • Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
  • It build in digital crosshairs and color control, add line in the pictures
  • We sell much to the industy factory, then the works can see the problems directly in the Monitor.

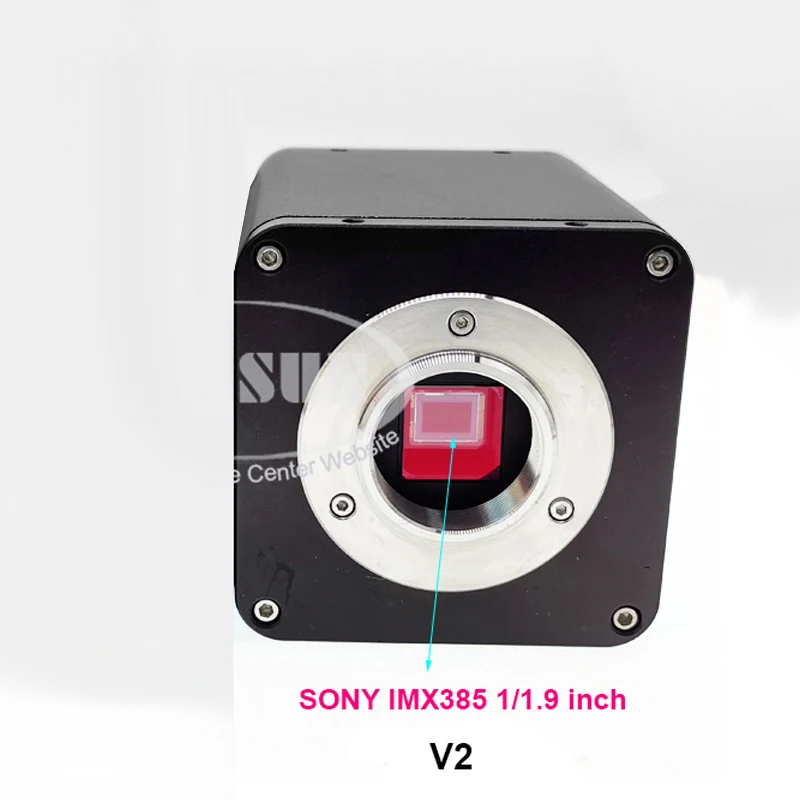

  • Image Sensor : SONY IMX385 V2 Colour CMOS
  • Menu : Fully digital UI design
  • Method of Operation : Mouse
  • Lens interface : C/CS-type
  • Power DC : DC12V
  • Output method : HDMI
  • White Balance : Auto / Manual / One-push control
  • Exposure : Auto / Manual
  • Display Frame rate : 1080P@60fps
  • Scanning method : Line by line scanning
  • Shutter Speed : 1/50s(1/60s)~1/10000s
  • Operating Temperature : 0℃~50℃
  • Digital Magnification / Zoom : Support
  • Saving function : Support U Disk Saving Photos and Videos
  • One (1) year manufacturer warranty

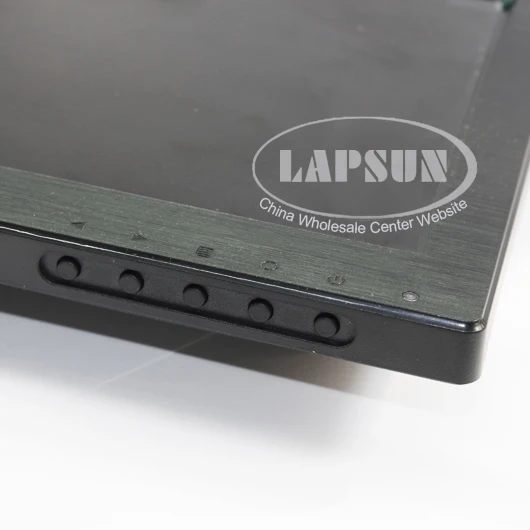

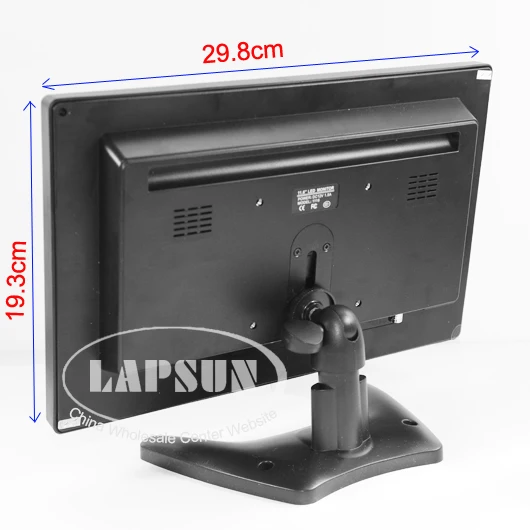

10.1 Inch IPS LCD Monitor Screen :


  • 10.1 inch (1280 x 800  ) high resolution TFT LCD monitor
  • Clear image and colorful display
  • Support BNC input for professional security system,which can reduce signal interference to achieved a best signal state
  • Multi video input supported (RCA, VGA, BNC)
  • Support 15-pin VGA input , connect with PC
  • Suitable for CCTV monitor, PC monitor or indoor use
  • Auto standy function with timer switch and no signal
  • Screen Size : 10.1"
  • Screen Resolution : 1200 x 800 pixels
  • Screen Brightness : 250-400 cd/m2
  • Screen Contrast : 400 : 1
  • Viewing Angle : 160° (H) x 160° (V)
  • Response Time : <= 12ms
  • Video Input : HDMI, AV-in, VGA, BNC
  • Multicolor model: PAL , NTSC
  • Refurbish ratio: 60-75Hz
  • Power Supply - Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 400mA

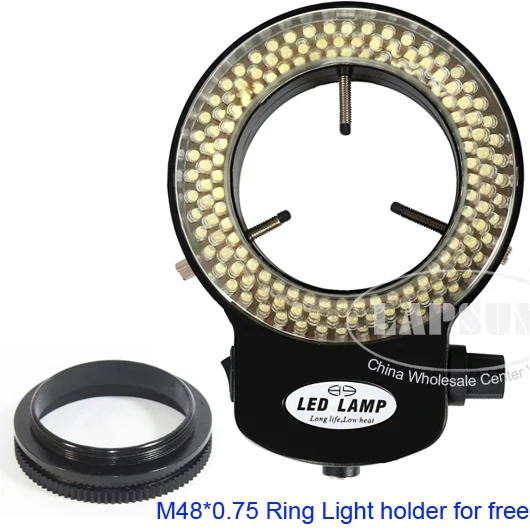

144LED Ring Light:


  • 144 bright white LED bulbs
  • 100,000 hours of life
  • Intense and focused shadow-free illumination
  • The brightness of 0-100%Adjustable,high brightness
  • Variable intensity control
  • Power input: 100-240V, 50-60HZ
  • Suit for the dia of the lens: 30mm-63mm
  • Color: white/black, if you want to have the faverate color, please leave us a message.
  • Output intensity: 35000LUX
  • Colour range: 6500K




Package including:

  • 1 x Simul-focal Trinocular Stereo Zoom Head
  • 1 x Pair of Extreme Widefield Focusable 10X Eyepieces
  • 1 x Track Stand
  • 1 x 0.5X CTV adatper
  • 1 x 144 LEDs Ring Light
  • 1 x Pair of Clips
  • 1 x Power Cord
  • 1 x User's Manual
  • 1 x IMX385 V2 Microscope Camera
  • 1 x HDMI Cable
  • 1 x USB Mouse
  • 1 x Power Adapter for Camera
  • 1 x10.1 inch IPS LCD Color Monitor
  • 1 x power supply for Monitor
  • 1 x Metal Arm for Microscope Camera Table Stand LCD
