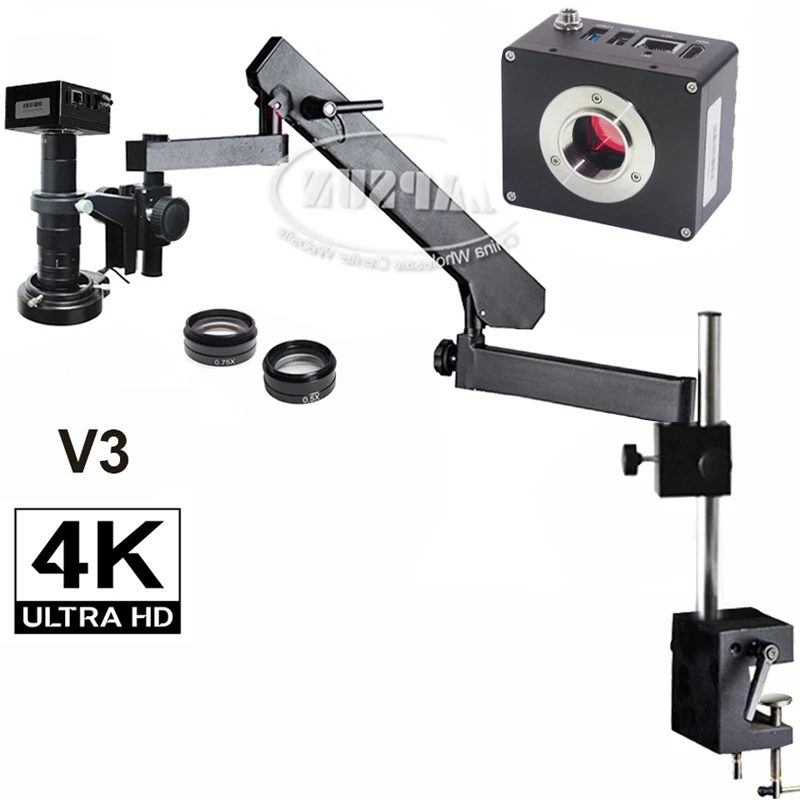

2023 4K IMX334 V3 60FPS HDMI USB LAN Industry Microscope Camera Set Articulated Stand Light 0.75X Barlow Lens For Mobile Soldering

Universal Rotable Articulating Clamp Arm Stand 7-150X Zoom Lens SONY V3 4K Ultra HD 60fps SONY imx334 1/1.8" Sensor HDMI digital microscope camera 4K HDMI USB GE microscope camera

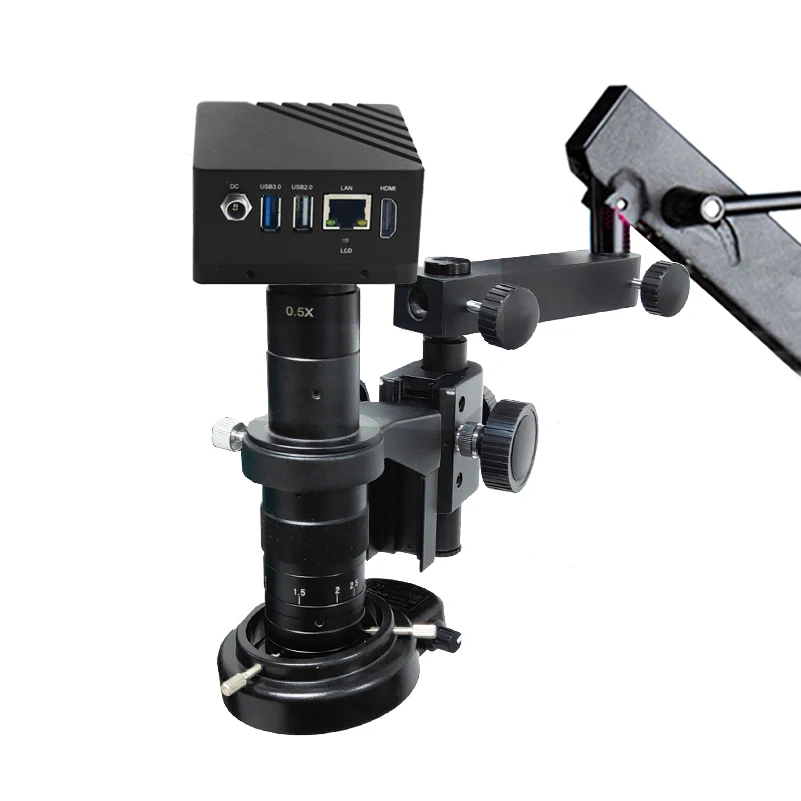

The Camera V3 is the next-generation live-view imaging-system with 4K resolution at 60/30 FPS. The Camera V3 comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters. The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television Hardware 3D denoising, sharpness and local tone mapping control functions greatly improve the image and video quality.




Digital Camera Feature:

• 4K HDMI / GE multiple video output
• High performance and fast response video
• H.264 codec
• 4k/1080P switch adaptively, Preview frame rate 60fps, max recording frame rate: 60fp

Specification:

• SONY imx334 V3 Sensor, senzor size:1/1.8"
• Pixel(μm) : 2.0x2.0
• Resolution: 4K Ultra HD (8mp 3840x2160)
• HDIM Video Output Preview frame rate： 4K@60fps / 4K@30fps / 1080P@60fps / 1080P50@fps
• Exposure : 1/50s(1/60s)～1/10000s
• Real time measurement
• Support U disk storage
• HDMI output

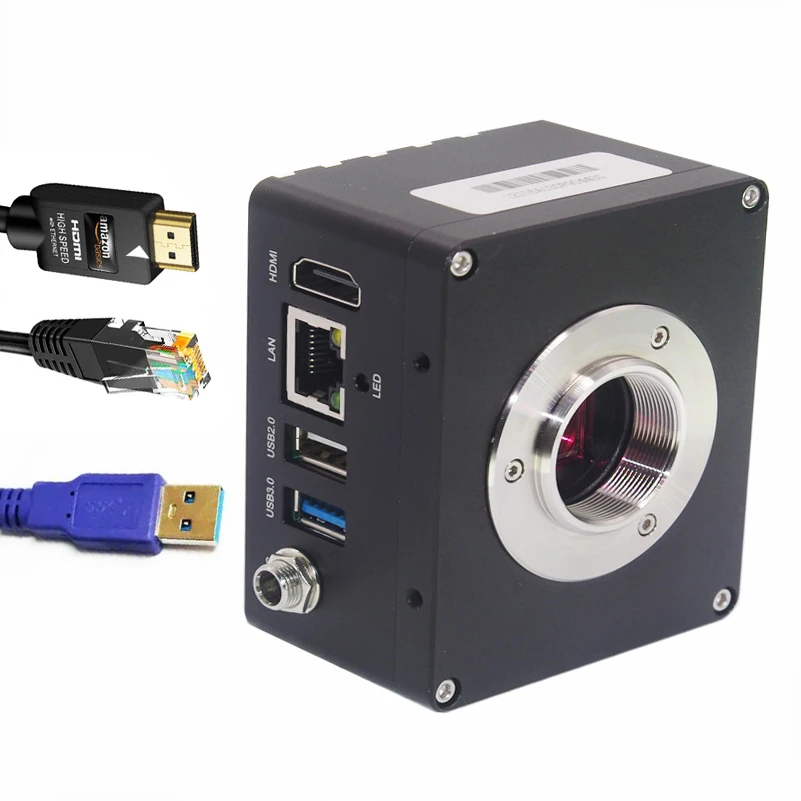

Video Output:

• HDMI Interface
• 1. Comply with HDMI2.0 standard;
• 2. Max frame rate 60fps@4K or 60fps@1080P;
• 3. The video saved into SD card or USB drive, video can be replayed on TV monitor directly from SD card or USB drive
• 2. H264 encoded video;
• 3. Bandwidth adjustment in real time;
• 4. unicast/multicast configuration;
• 5. DHCP configuration or manual configuration
• USB3.0 Output
• 1. Max frame rate 15fps@4K, 60fps@1080P Resolution
• 2. Camera Working with Computer via USB3.0 cable,
• 3. RisingTech will provide RisingView software for buyer
•







•
• LAN Video Output
• 1. Max frame rate 15fps@4K or 60fps@1080P;Resolution
• 2. Camera Working with Computer via RJ45 cable,
•





•

C-MOUNT Lens:

• Working distance:100mm (when using 0.35X Auxiliary objective Working distance:190mm)
• Connector:CS C mount
• Zoom:continouasly variable zoom
• Objective Magnification:0.7X - 4.5X(about 10 - 180X on the display )
• Eyepiece lens adapter:0.5X
• Fixed position:35mm
• Locking:0.7X - 4.5X Locking
• Thread: 42mm
• Auxiliary Objective Lens:0.75X （Work Diatace: 12-13CM, Visual field: 3m-34mm） , 0.5X （Work Diatace: 17CM-24CM, Visual field: 4m-50mm）
• Size:180mm(L) * 50mm(DIA)

144 Bulbs Microscope LED Ring Light:

• 144 bright white LED bulbs
• 100,000 hours of life
• Intense and focused shadow-free illumination
• The brightness of 0-100%Adjustable,high brightness
• Variable intensity control
• Power input: 100-240V, 50-60HZ
• Suit for the dia of the lens: 30mm-63mm

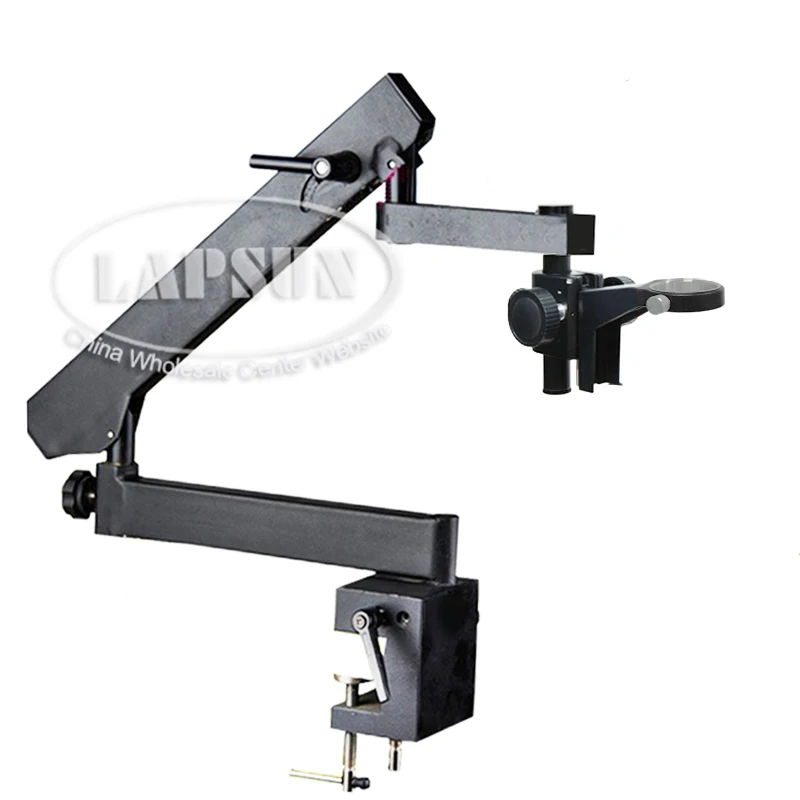

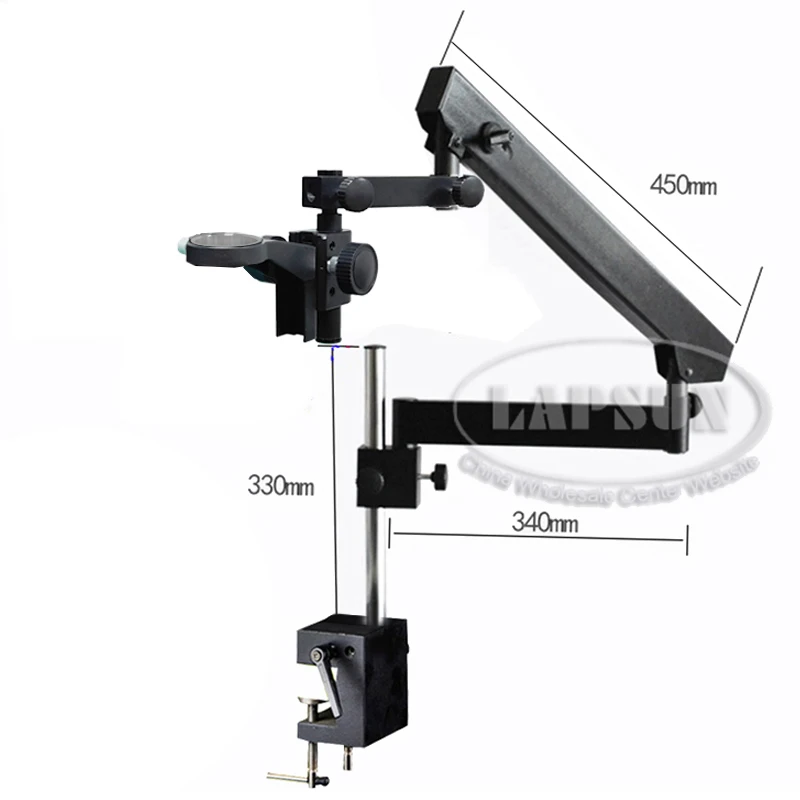

Universal Stand Feature:

• Expand the scope of operations,any orientation and angle observed the objectives.
• Vertical Height : 400mm
• Horizontal Distance:770mm
• Base size: 98x80x116mm
• Max Clamp：50mm
• Steel Gears on Focusing Holder.
• Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm,Connection diameter of 16mm.
• Column(option) height: 330mm

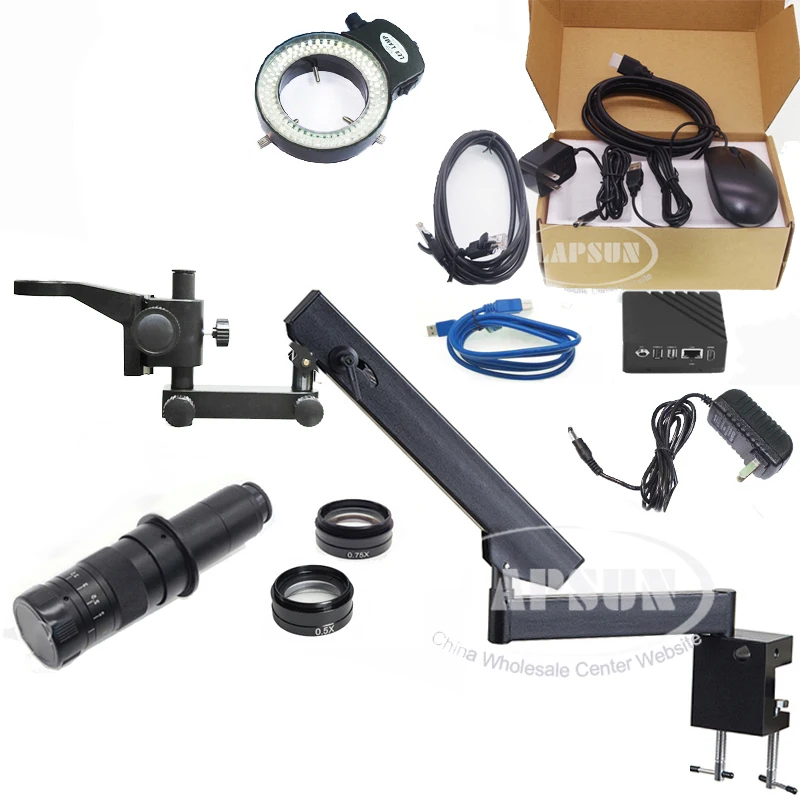

NO.1 SET Package including(not include Column):

• 1 x Microscope Camera
• 1 x Power supply(AU/EU/US/UK)
• 1 x HDMI Cable
• 1 x USB Mouse
• 1 x 10-180X C-MOUNT Lens
• 1 x 144 LED Ring Light
• 1 x Ring Adapter
• 1 x Articulating Arm Clamp Microscope Bracket (not include Column)
• 1 x 0.75X Auxiliary Objective Lens
• 1 x 0.5X Auxiliary Objective Lens
