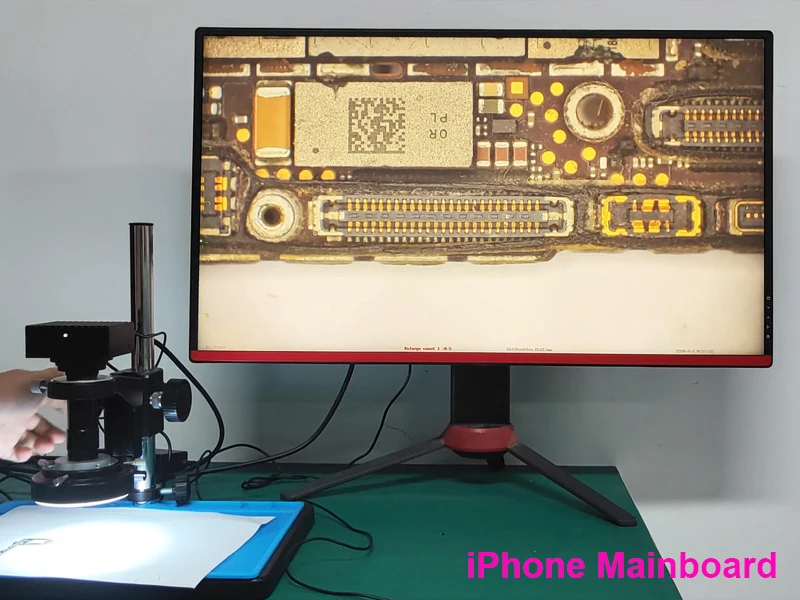

Wide-Field Area 4K HDMI USB3.0 GE LAN IMX334 60FPS Industry Microscope C-Mount Camera Set for Mobile Soldering

Wide-Field Area 4K HDMI USB3.0 GE LAN IMX334 60FPS Industry Microscope C-Mount Camera Set for Mobile Soldering

$425.00
Model



  • Description
  • Reviews
  • Shipping & Returns





































































Wide-Field 4K Ultra HD 60fps SONY imx334 1/1.8" Sensor HDMI GE port USB 3.0 Video output digital microscope camera 4K HDMI USB microscope camera






The B36 Camera is the next-generation live-view imaging-system with 4K resolution at 60/30 FPS.

B36 Camera comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.

The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via USB or Gigabit Ethernet (GE) for image-capture and video-recording.

Hardware 3D denoising, sharpness and local tone mapping control functions greatly improve the image and video quality.










Feature:



  • 4K HDMI / GE multiple video output
  • 4k/1080P switch adaptively, Preview frame rate 60fps, max recording frame rate: 60fps
  • 30fps for USB and GE port output
  • Multifunction measurement function
  • Save the picture (picture) to the TF Card or browse the pictures in the TF Card .
  • Cross lines: 1-12 groups, color is optional, size adjustable.
  • Freeze function: two split screen, four split screen
  • Scale: any number of scale pixels can be adjusted arbitrarily.
  • Measure function: distance between two points, rectangle, circle, angle, etc.

Specification:



  • Sensor(option): SONY imx334 Sensor, senzor size:1/1.8"
  • Pixel(μm) : 2.0x2.0
  • Resolution: 4K Ultra HD (8mp 3840x2160)
  • Preview frame rate: 60fps @ 4K under HDMI , 30fps@3840x2160 (USB,GE)
  • Max recording frame rate: 50fps-60fps under HDMI
  • Exposure : 0.1ms~1000ms
  • Real time measurement
  • Support TF card storage
  • HDMI, USB and GE port (Ethernet) Video output

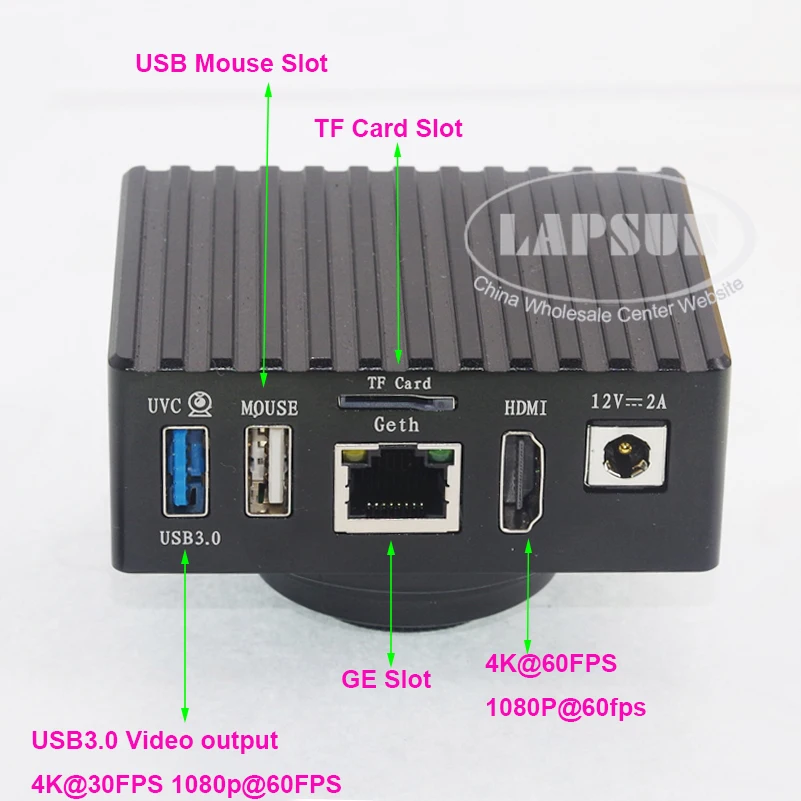

Video Output:



  • HDMI Interface
  • 1. Comply with HDMI2.0 standard;
  • 2. Max frame rate 60fps@4K or 60fps@1080P;
  • 3. The video saved into SD card or USB drive, video can be replayed on TV monitor directly from SD card or USB drive
  • GE Interface
  • 1. Max frame rate 30fps@ 4K resolution
  • 2. H264 encoded video;
  • 3. Bandwidth adjustment in real time;
  • 4. unicast/multicast configuration;
  • 5. DHCP configuration or manual configuration
  • USB3.0 Output
  • 1. Max frame rate 30fps@4K Resolution
  • 2. Camera Working with Computer via USB3.0 cable,
  • 3. We will provide S EYE software for buyer

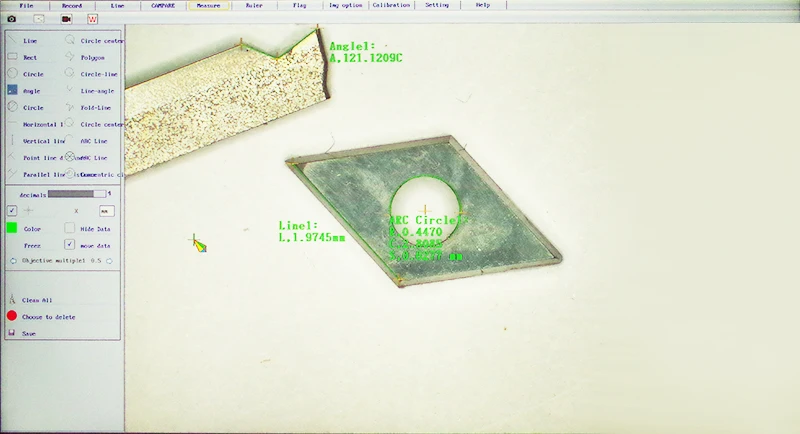

Camera Measurement Toolbar:




  • The Measurement Toolbar will pop up when Press the right mouse button. Here is the introduction of the various functions on the Measurement Toolbar







10-100X Wide-Field Lens:




  • 10-100X zoom c-mount Lens
  • Magnification Power by 0.1 - 2X (about 5- 100X on the display )
  • Work distance:80mm - Infinity
  • Visual field :8mm(when Work distance is 80mm) - 60mm (when Work distance is 300mm)
  • Size: 115mm(L) * 40mm(DIA)
  • Weight: 180g

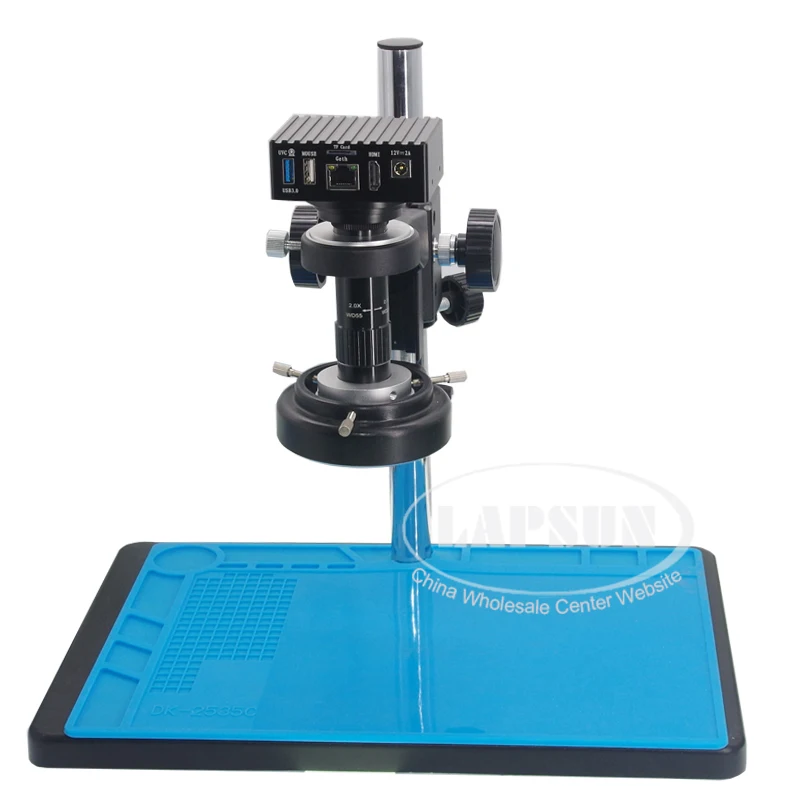

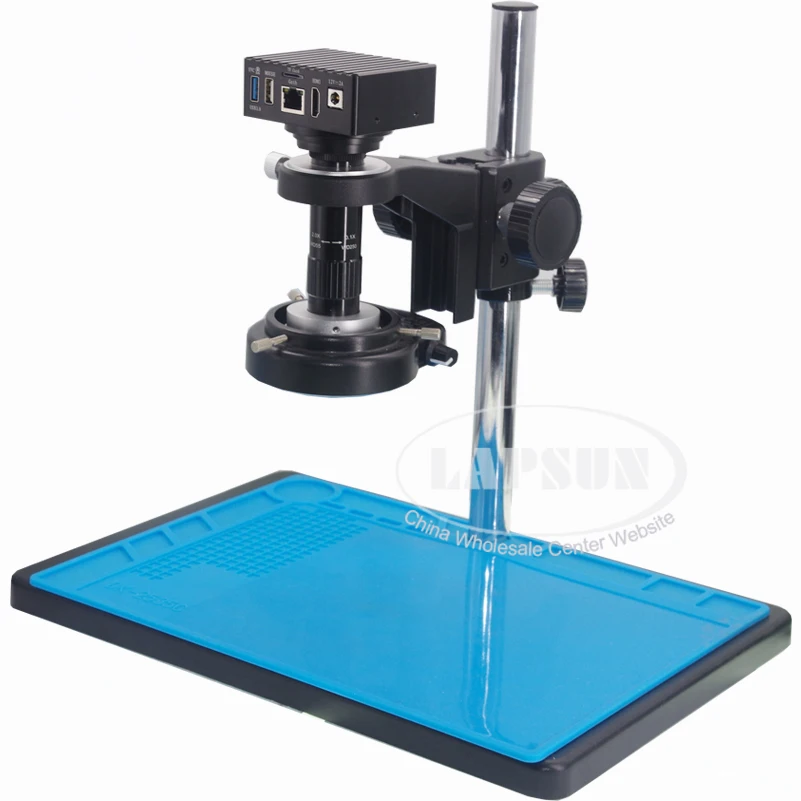

Package including:

  • 1 x 4K Camera (SONY imx334 Sensor)
  • 1 x HDMI cable
  • 1 x USB3.0 Cable (USB Video Cable)
  • 1 x Power Supplier (EU, US and UK for choice)
  • 1 x Metal Stand
  • 1 x 10-100X Wide-Field Lens
  • 1 x 144LED Ring Light
  • 1 x 28mm to 50mm ring
  • 1 x Heat Insulation Silicone Pad
