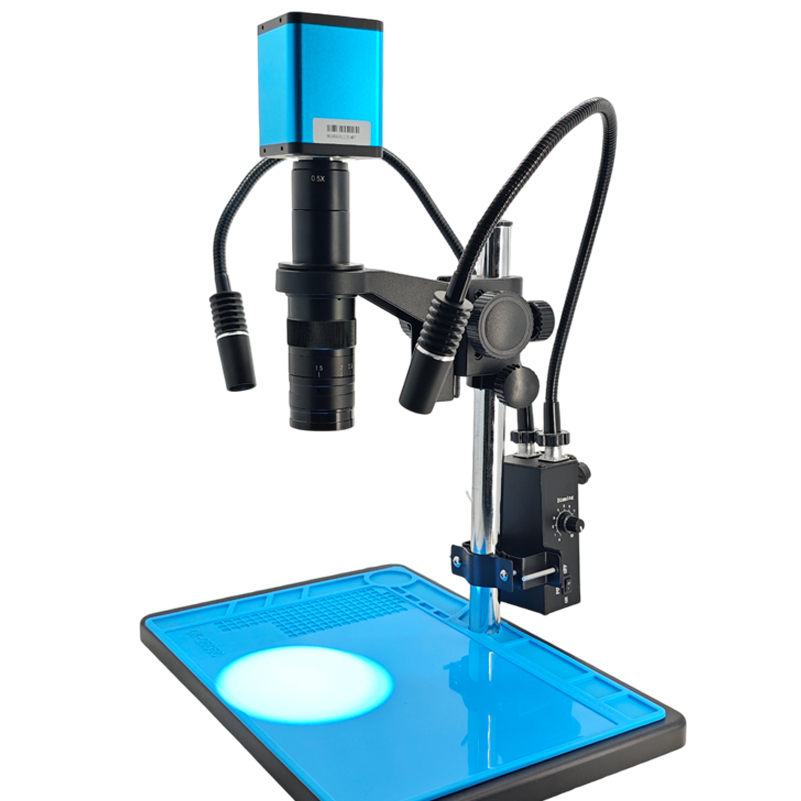

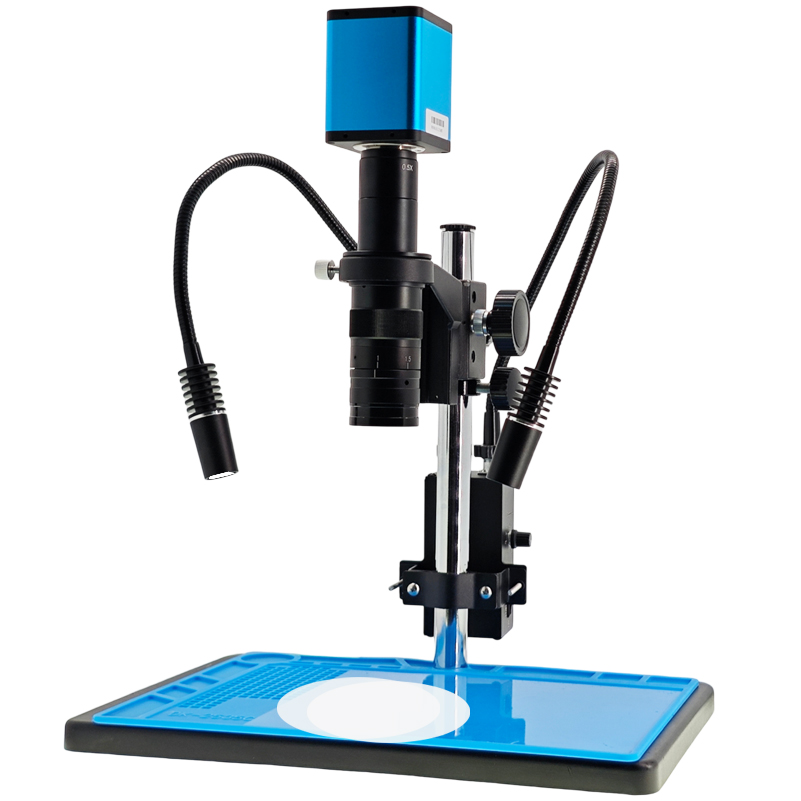

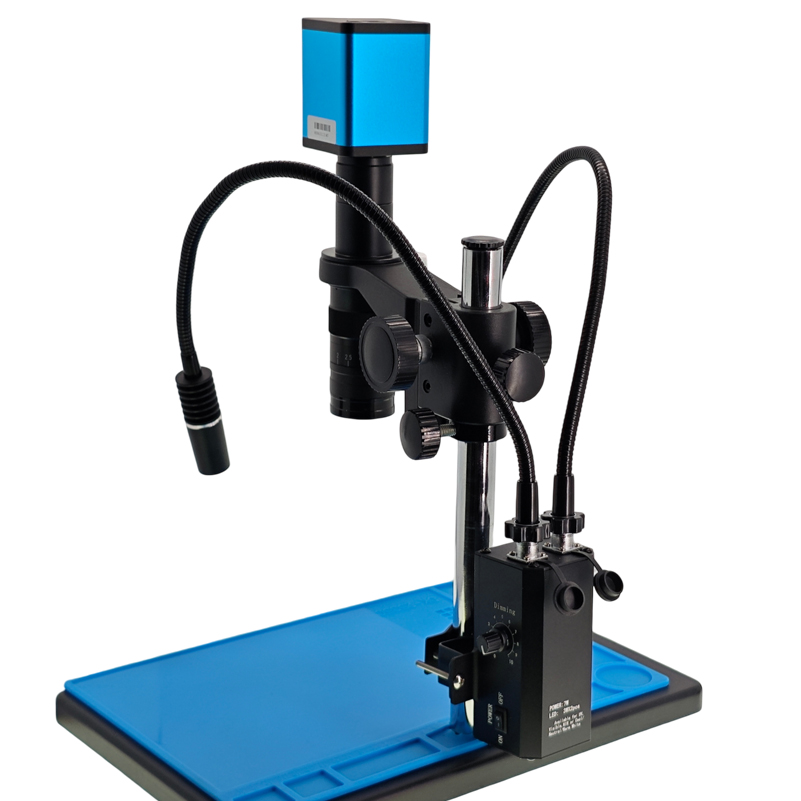

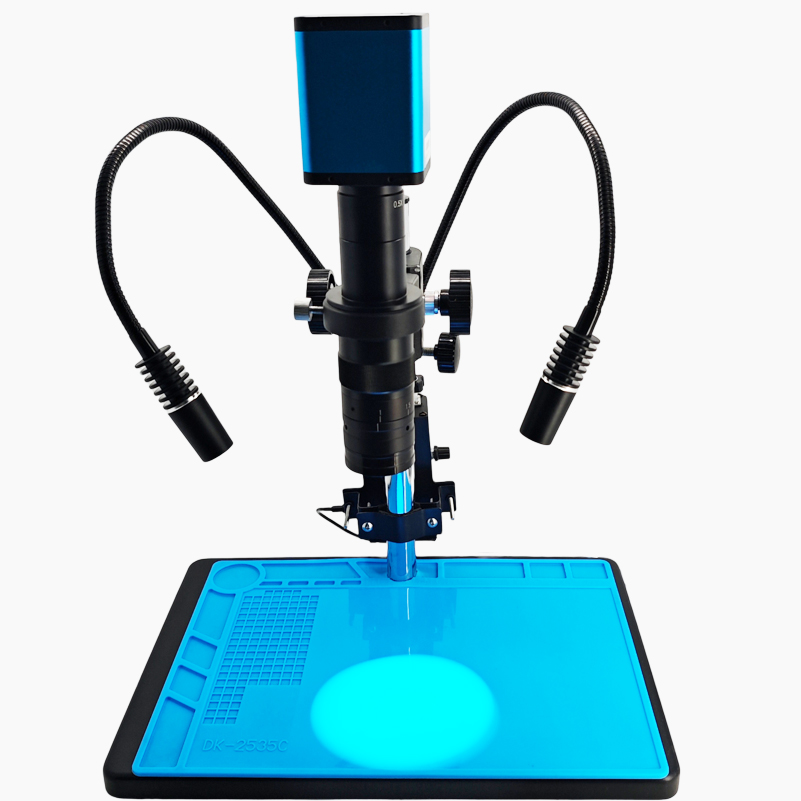

Lapsun 4K 60FPS Sony IMX678 HDMI Industry Microscope Camera Set with Anti-reflect Light High WD

4K @30FPS /1080P @60FPS SONY IMX678 HDMI Video Output
with 20cm Long WD LENS
and 3W+3W Dual Gooseneck Anti-reflective Lights

Camera Application:

• Scientific research, digital teaching (teaching, demonstration and academic discussing);
• Digital laboratory, medical research;

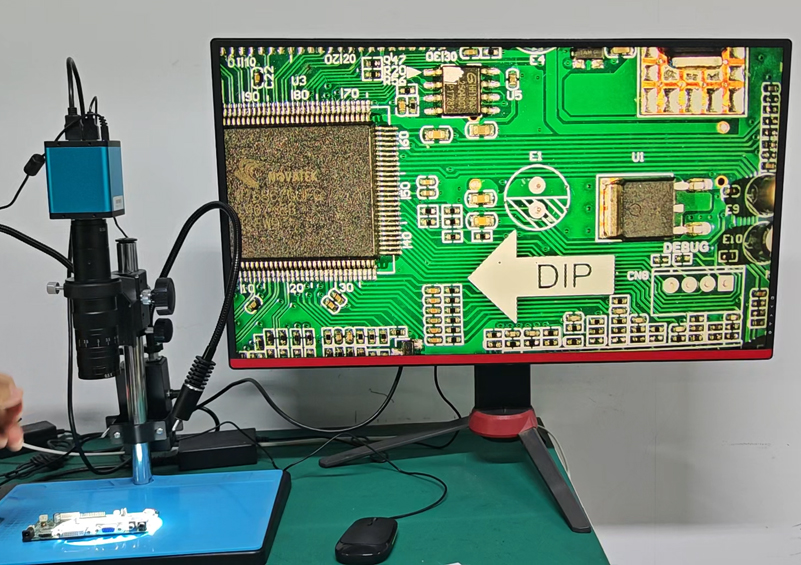

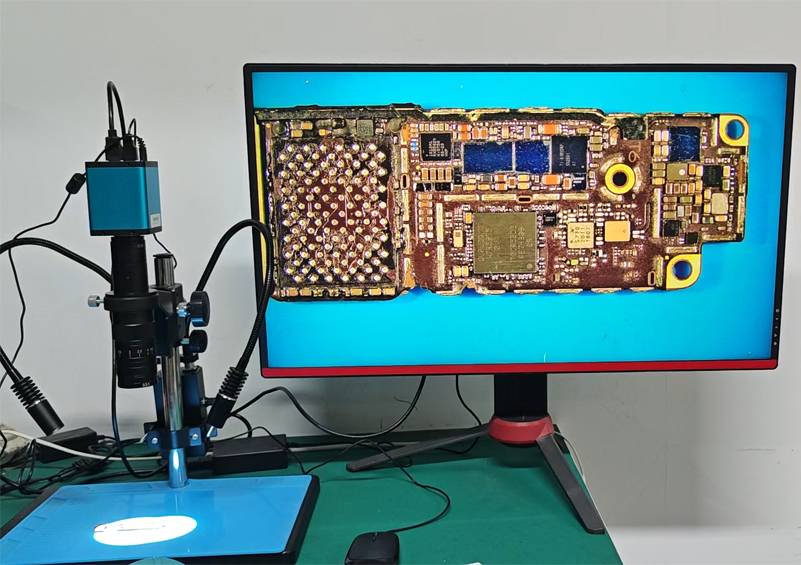

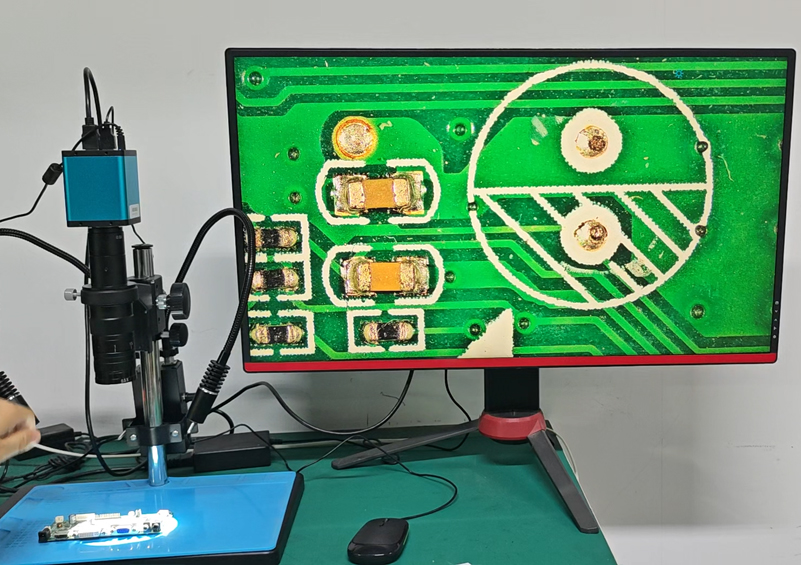

• Machine vision (PCB detection, IC quality control);
• Medical treatment (pathological observation);
• Food (microbial colony observation and counting);
• Aviation and military;

Specification:

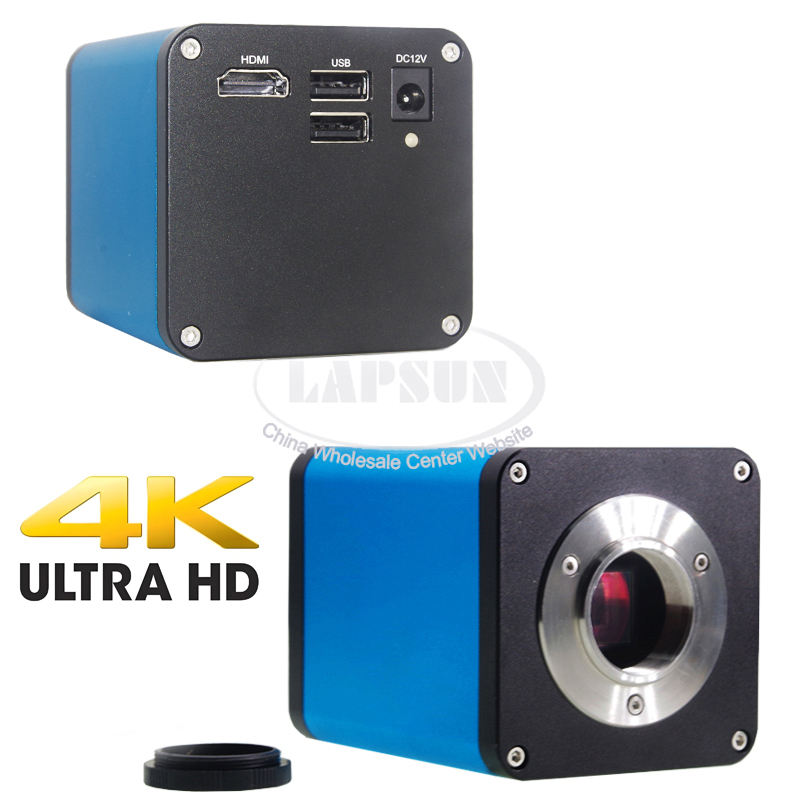

• Sony Exmor/STARVIS back-illuminated CMOS sensor

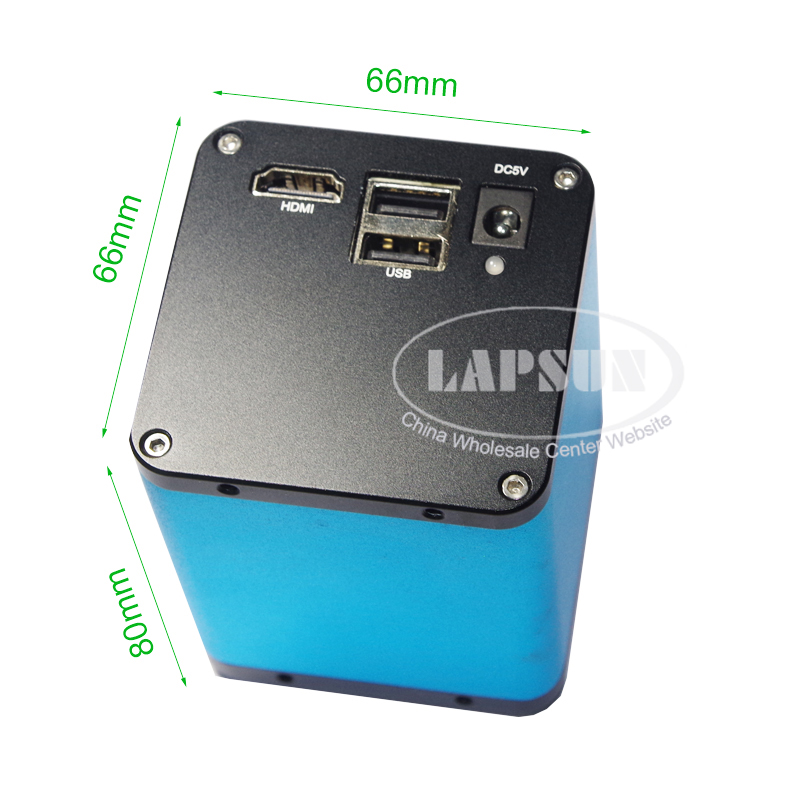

• 4K HDMI video outputs
• 4K/1080P auto switching according to monitor resolution
• USB flash drive for captured image and video storage, support local preview and playback
• This industrial camera has a measurement function

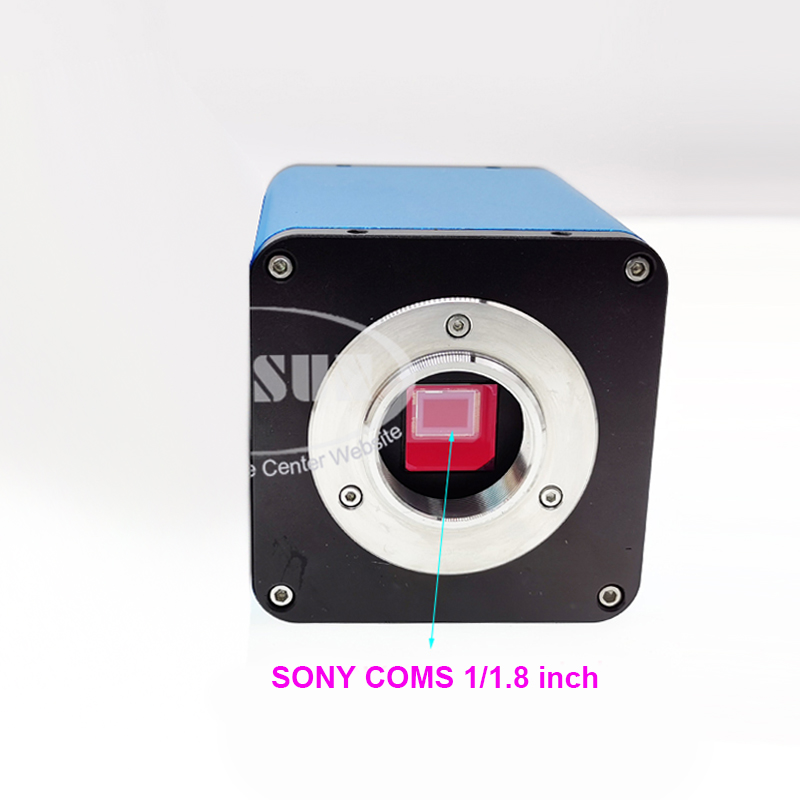

• SONY CMOS Sensor, senzor size:1/1.8"
• Pixel(μm) : 2.0x2.0
• Resolution: 4K Ultra HD (8mp 3840x2160)

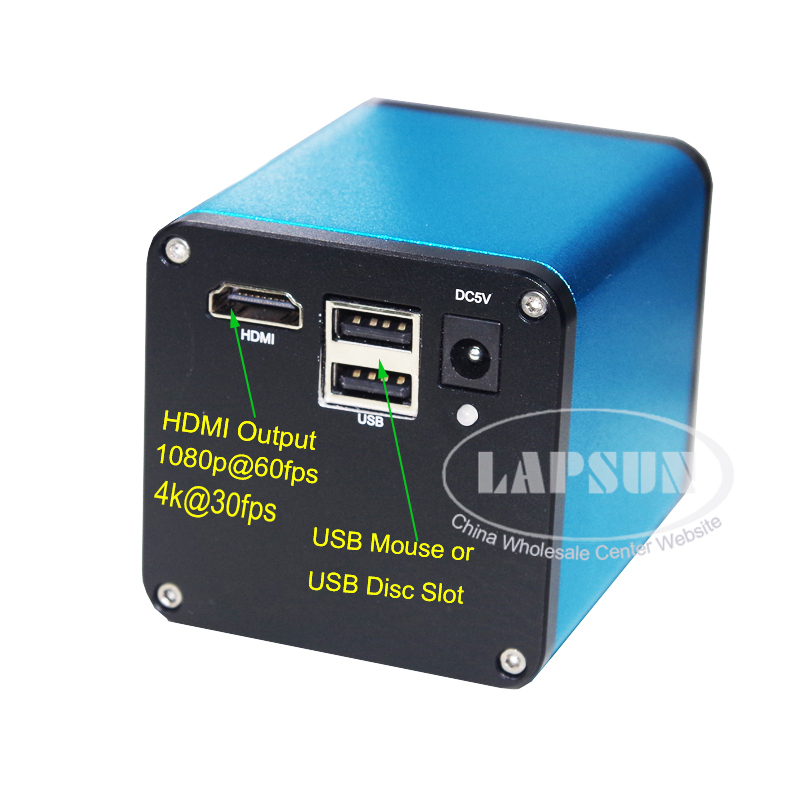

• Preview frame rate： 30fps @ 4K under HDMI , 60fps @ 1080P under HDMI
• Exposure : 0.1ms~1000ms

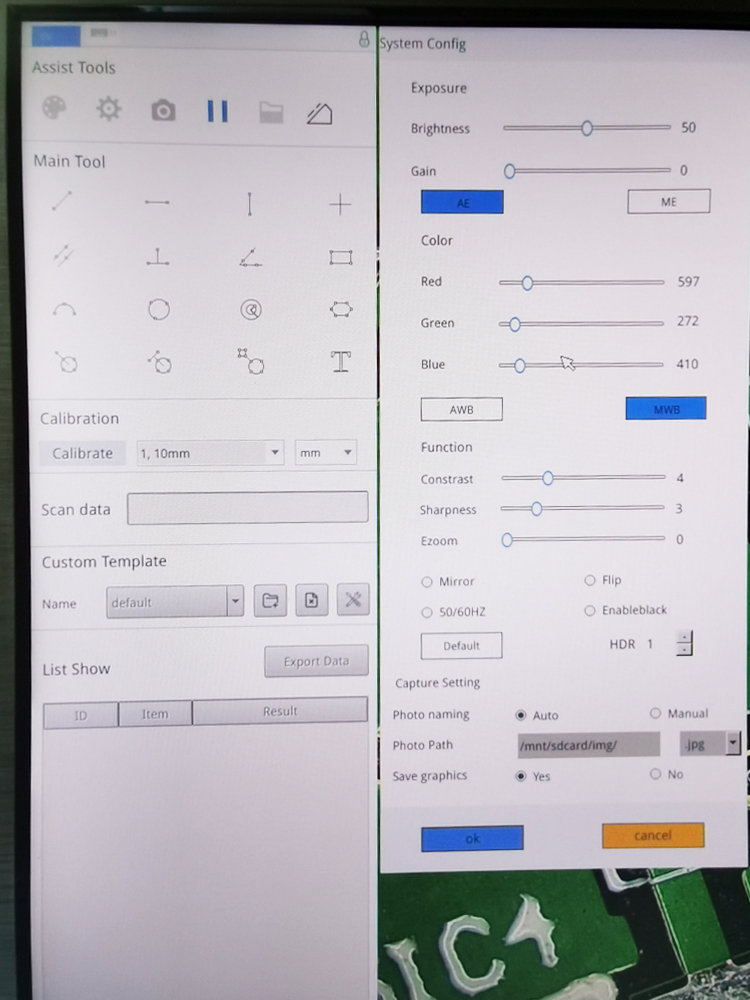

• Real time measurement
• Support U disk storage

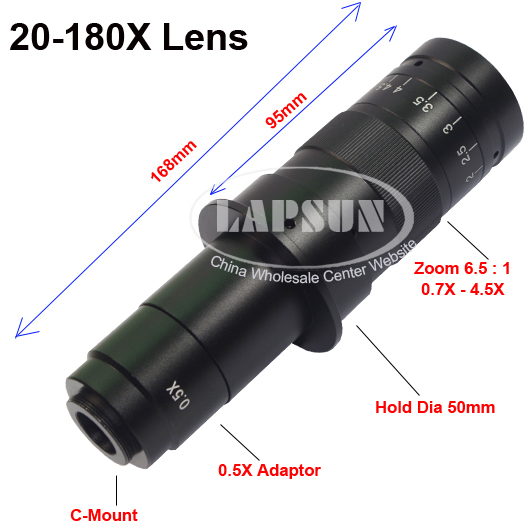

C-MOUNT Lens:

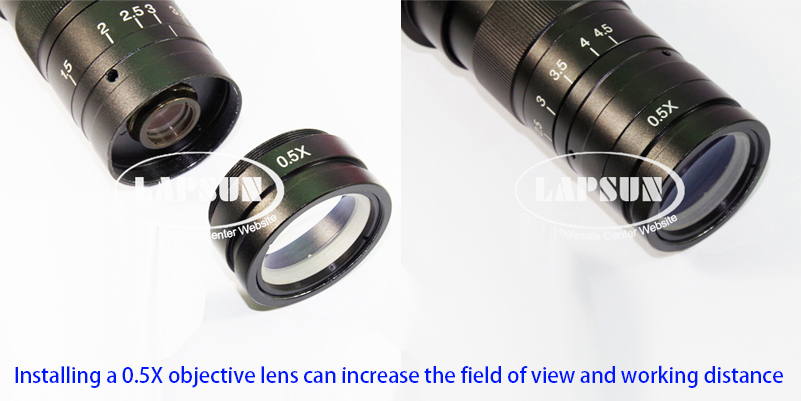

• Working distance: 95mm(when Using 0.5X Objective lens,Working distance is 200mm)
• zoom c-mount Lens
• 0.5X C-mount adapter
• zoom ratios: 6.5:1
• Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
• Size: 180mm(L) * 50mm(DIA)
• Weight: 450g

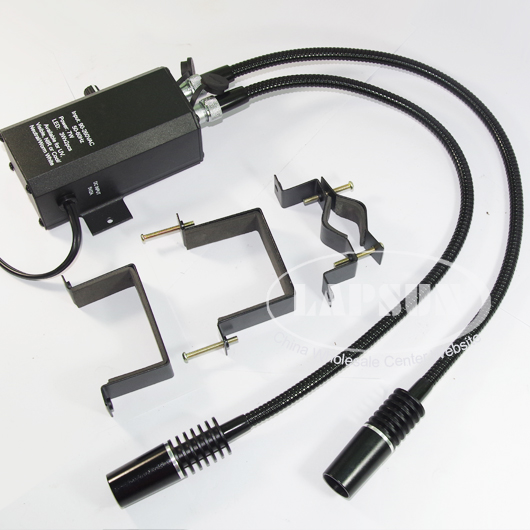

Dual Gooseneck Lights Illuminator:

• Step-less dimming
• Easy change detachable Gooseneck light source
• Eleven different color optional for change
• High index of refraction glass lense
• Size: 710mm x 60mm x 50mm (H x W x L)
• Neck Length: 580mm
• Gooseneck Length: 450mm
• Power: 3W x 2
• Input Voltage: 90V-260V

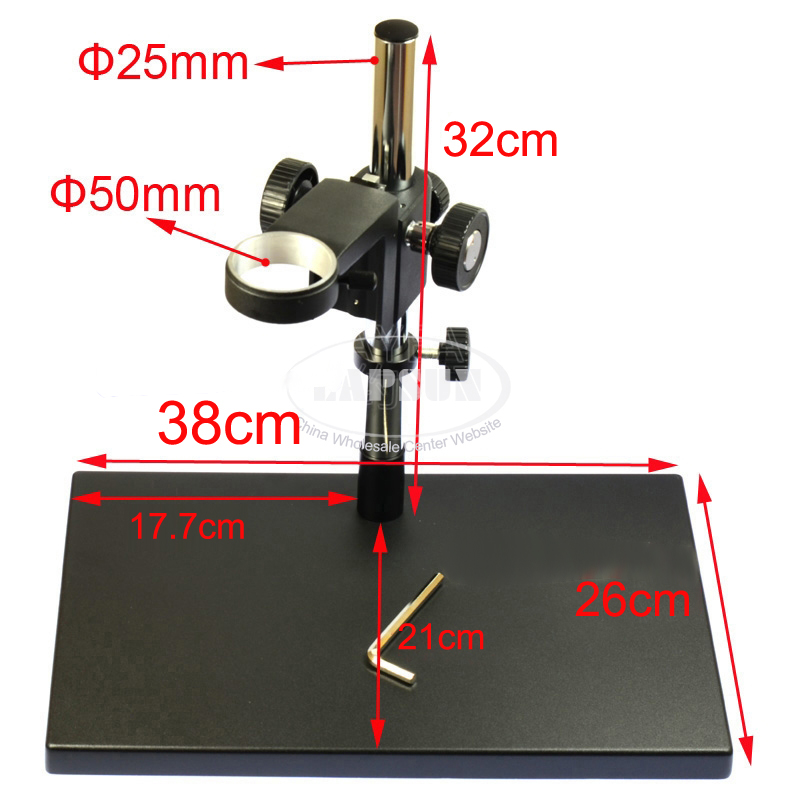

Metal Stand Feature:

• Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
• Steel Gears on Focusing Holder.
• Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
• Weight: 2.5kg





Heat Insulation Silicone Pad:

• 1.Fireproof

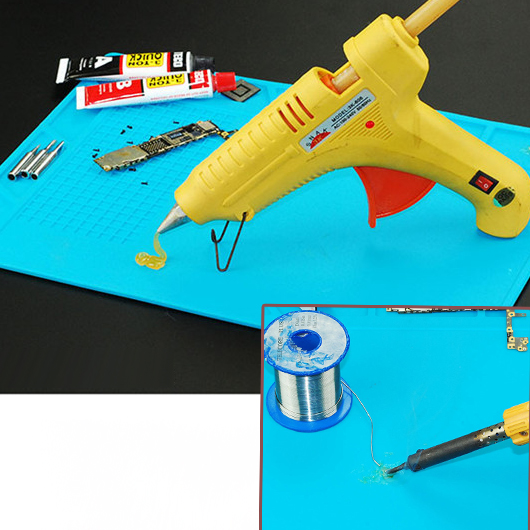

  this heat insulation silicone repair mat is fireproof material in good quality, 843°F high temperature tin melting, can directly solder on it. It's an ideal repair tools, specially suitable for smart phone repair, computer repair, tablet repair, iPhone repair, sport watches repair, IC circuit boards repair and other electronic devices.
• 2.Anti-static
  this phone repair mat can use as screw tray, tools tray cause it's an anti-static repair pad and add built-in scale ruler (0 ~25cm), 124 screws position and 8 notches to classify different parts. It's your necessary repair tool which can make your work more easily and clearly.
• 3.Anti-corrosion
  this computer repair mat is made of high quality silicone. It resists corrosion and out of shape. Its texture is soft, solid and durable to protect soldering iron tip.
• 4.Easy to Clean
  the repair pad is easy to clean with soap and water. The omissive tin stick on the mat when soldering, just gently scratch your nail over the tin, it will fall off and mat recovers clean immediately without any vestige. This silicone mats environmental safety is conductive to improving the working environment of technicians.
• 5.Anti-Slip
  anti-Slip and Anti-static Design: Both surface and back side are adopting the anti-slip design.
• Material: Patience high-temperature materials
• Maintenance : Water washing detergent or soft cloth

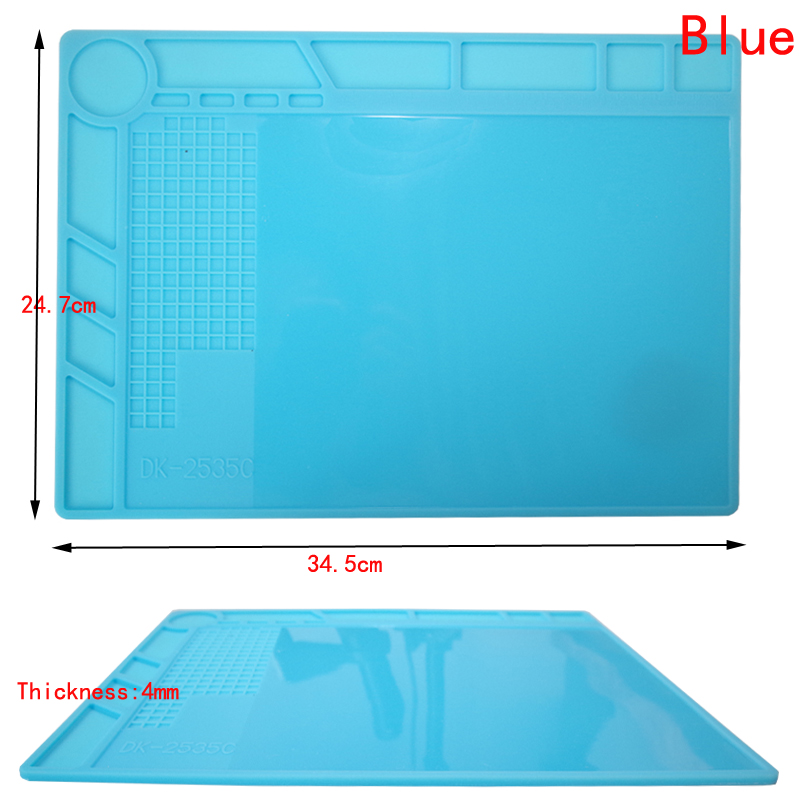

• Stype(color,size,thickness)(option): Blue, 247mm * 345mm , Thickness: 4mm

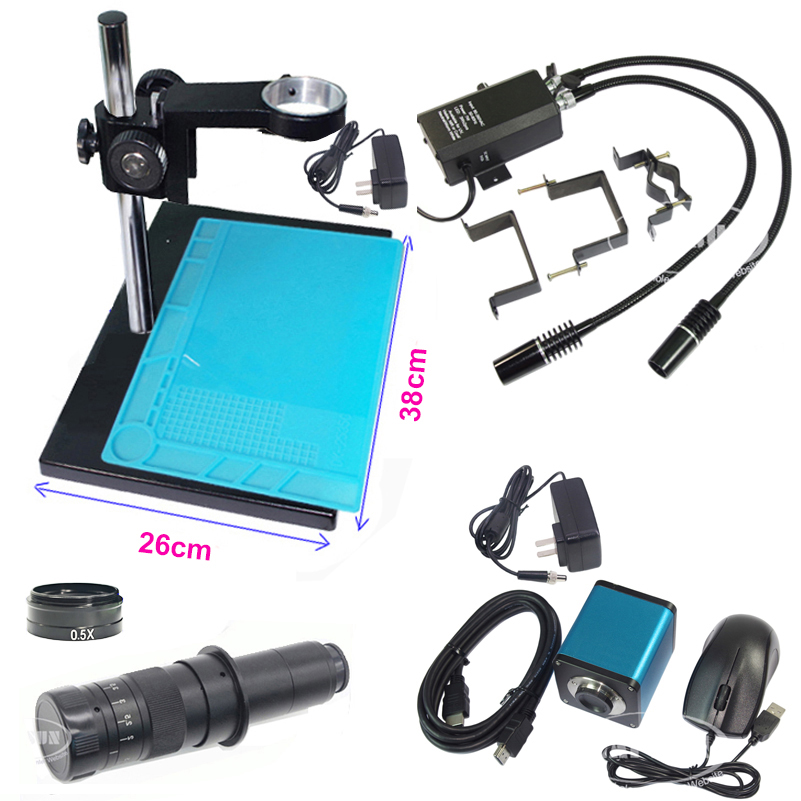

Package including:

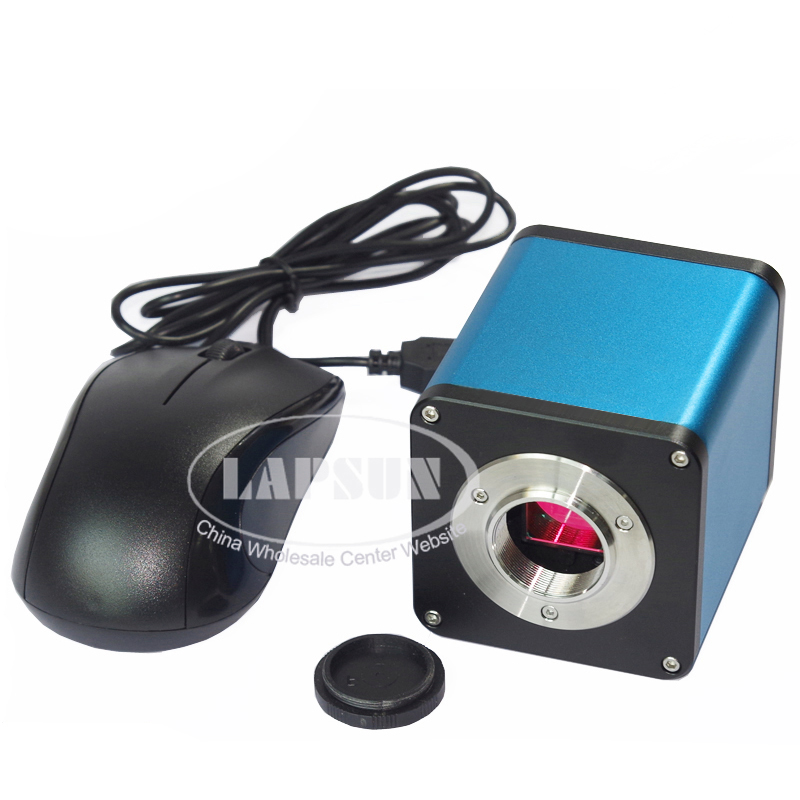

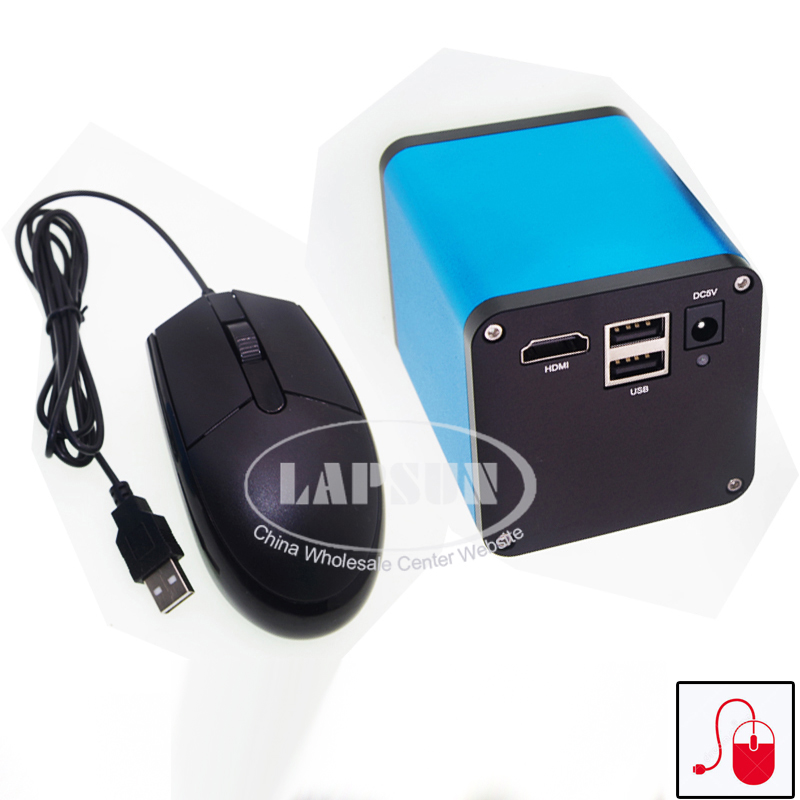

• 1 x 4K Camera
• 1 x HDMI Cable
• 1 x USB Mouse
• 1 x Power Supplier (EU, US and UK for choice)
• 1 x 10X-180X C mount Lens
• 1 x 0.5X Auxiliary objective
• 1 x Metal Stand
• 1 x Dual Gooseneck Light
• 1 x Heat Insulation Silicone Pad
