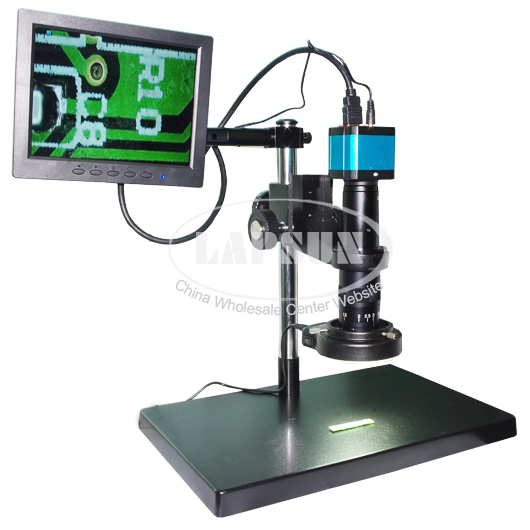

14MP HDMI USB Video Industry Microscope Set 8" IPS HDMI Monitor Camera 180X Lens
  • 14MP HDMI USB Video Industry Microscope Set 8
  • 14MP HDMI USB Video Industry Microscope Set 8
  • 14MP HDMI USB Video Industry Microscope Set 8
  • 14MP HDMI USB Video Industry Microscope Set 8
  • 14MP HDMI USB Video Industry Microscope Set 8" IPS HDMI Monitor Camera 180X Lens

14MP HDMI USB Video Industry Microscope Set 8" IPS HDMI Monitor Camera 180X Lens

$325.00



  • Description
  • Reviews
  • Shipping & Returns

Features:

  • High Quality, High Resolution, Clear Images
  • 14MP Japan CMOS
  • Encode: H.264 (High Profile)
  • TF Card Video Recorder
  • 720P 1280*720@30FPS video recorder
  • Photo Model / Video Model
  • Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
  • It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negative,Compare function
  • Supply USB2.0,HDMI HD video,Two output ports
  • We sell much to the industy factory, then the works can see the problems directly in the Monitor.

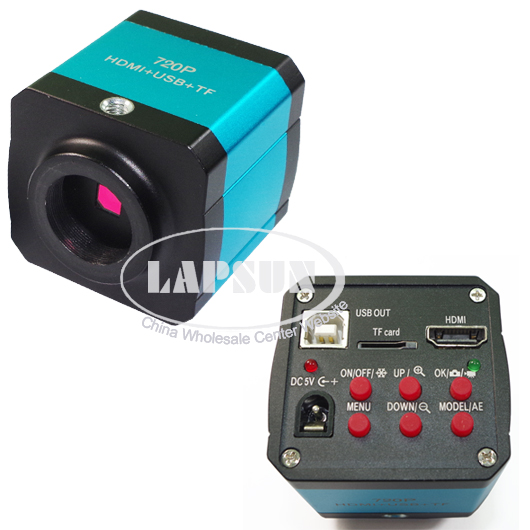

  • Model: Camera with HDMI USB2.0 two output
  • Sensor: 14mp,1/3 inch
  • Image format: jpg
  • Image resolution: 2592 * 1944 (for TF Card), 1280 *720 (for USB)
  • Video format: AVI
  • Video resolution: 1280 *720 @ 30FPS
  • Encode: H.264 (High Profile)
  • White Balance: Auto
  • Light: Auto
  • Color: Color
  • Negative: Support
  • Morror: Left/right,Up/Down
  • Freeze: Support
  • OSD: English/Chinese
  • Line: different color,4 horizontal line , 4 vertical line,any positions

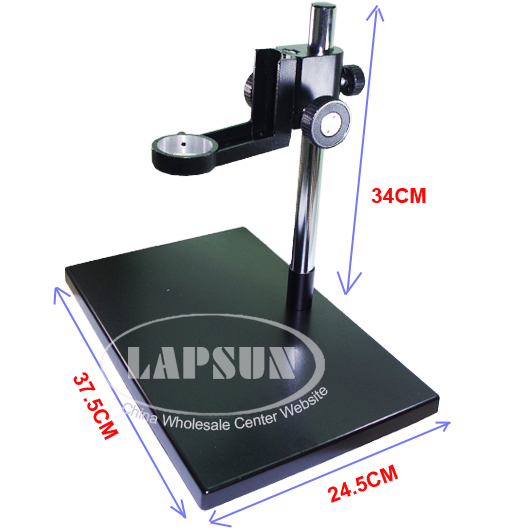

Stereo Table Stand Feature:

  • Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
  • We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.
  • Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
  • Steel Gears on Focusing Holder.
  • Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
  • Item size: see the 1th picture
  • Weight: 2.6kg

8" HDMI TFT LCD Color Monitor:

  • 8 inch (1024 x 768) high resolution TFT LCD monitor
  • Clear image and colorful display
  • Support BNC input for professional security system,which can reduce signal interference to achieved a best signal state
  • Multi video input supported (RCA, VGA, BNC)
  • Support 15-pin VGA input , connect with PC (1024*768)
  • Suitable for CCTV monitor, PC monitor or indoor use
  • Built-in high quality speakers
  • Auto standy function with timer switch and no signal
  • Screen Size : 8"
  • Screen Resolution : 1024 x 768 pixels
  • Aspect Ratio : 4 : 3
  • Screen Brightness : 400 cd/m2
  • Screen Contrast : 400 : 1
  • Viewing Angle : 160° (H) x 160° (V)
  • Response Time : <= 12ms
  • Video Input : HDMI, AV-in, VGA, BNC
  • Power Supply - Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 400mA
  • Dimensions : - approx. 195 (W) x 160 (H) x 32 (D) mm

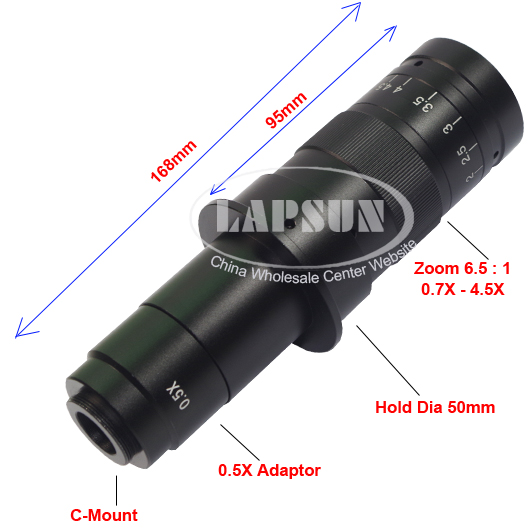

C-MOUNT Lens:

  • Working distance: 95mm
  • zoom c-mount Lens
  • 0.5X C-mount adapter
  • zoom ratios: 6.5:1
  • Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
  • Size: 180mm(L) * 50mm(DIA)
  • Weight: 450g

144 Bulbs Microscope LED Ring Light:

  • 144 bright white LED bulbs
  • 100,000 hours of life
  • Intense and focused shadow-free illumination
  • The brightness of 0-100%Adjustable,high brightness
  • Variable intensity control
  • Power input: 100-240V, 50-60HZ
  • Suit for the dia of the lens: 30mm-63mm

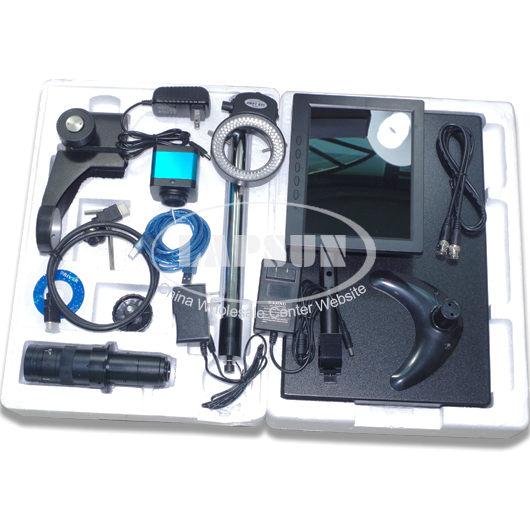

Package Content:



  • 1 x Camera
  • 1 x C-MOUNT Lens
  • 1 x 8" HDMI TFT LCD Color Monitor
  • 1 x HDMI Connect cable
  • 1 x power supply
  • 1 x USB line
  • 1 x Software DISC
  • 1 x LED Ring light
  • 1 x Digital Microscope Table Stand
