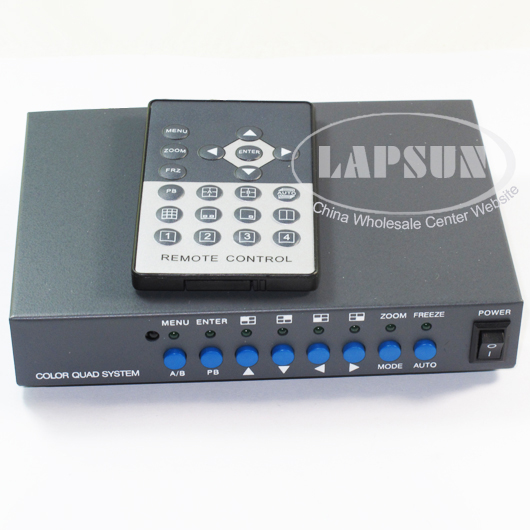

CCTV 8 Channel Digital Color Quad System Video Processor Splitter VGA Switcher

$74.95



  • Description
  • Reviews
  • Shipping & Returns

Description:

  • Connects up to 4~8 Video camera.
  • High Resolution,720x576 50Hz for PAL.720x480 60Hz for NTSC.
  • Various Display Modes, QUAD Split Mode/.Full Screen Mode/PIP Screen Mode non-realtime 8 split mode, dual split mode, auto sequence mode.
  • High Performance Freeze/Zoom Function.
  • Various Overlay Information, Camera Title/Real Time and Date/Alarm/Loss/Motion Message.
  • Playback in QUAD or Full Screen Image..
  • Provide Various Event Input and Detection, Video Loss/Motion Detection/60 Event Report/Built-in Buzzer and Relay Output.
  • Security Video Processor has various display modes, quad split mode, full screen mode, PIP screen mode,non-realtime 8 split mode, dual split mode, auto sequence mode.

Specification:
  • Video System: PAL/NTSC
  • Resolution: PAL: 720 (H) x 576 (V) / NTSC: 720 (H) x 480 (V)

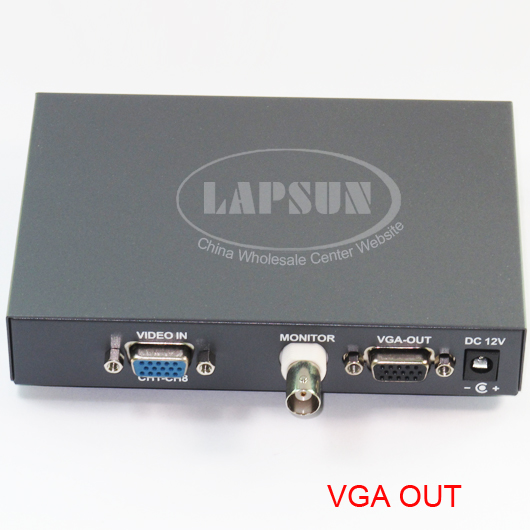

  • Video Input: 8 channel video signal input ,1Vp-p,75O
  • Video Output: 1 channel TV monitor output ,1Vp-p,75O
  • VGA Output: Auto Switch 0 - 99 sec
  • Event Record: 60 groups
  • Alarm Out: NO
  • Video Adjust: Brightness ,Contrast, Saturation, Hue, Sharpness can be adjustable
  • Power Consumption: 4.5W(350mA)
  • Operation Temperature: -10 C to 60 C
  • Operational Humidity: within 85%RH
  • Supplied Supply: DC12V
  • Dimension: 140mm(L) × 100mm(W) × 25mm(H)
  • Weight: 485g

Package content:
  • 1 x Color Quad System

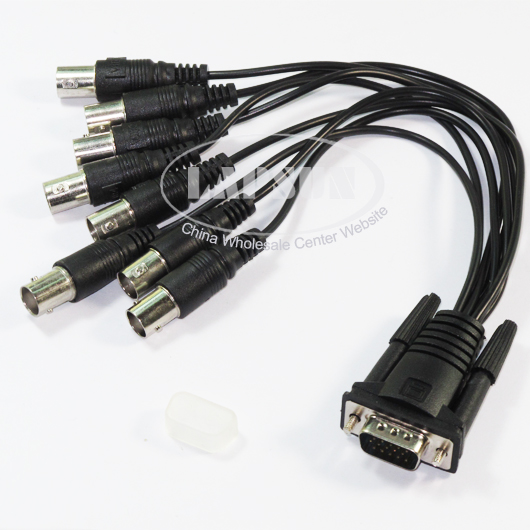

  • 1 x 8 in 1 Cable
  • 1 x Remote Controller
  • 1 x User's Manual
  • 1 x AC Adapter (US/EU/UK/AU)
