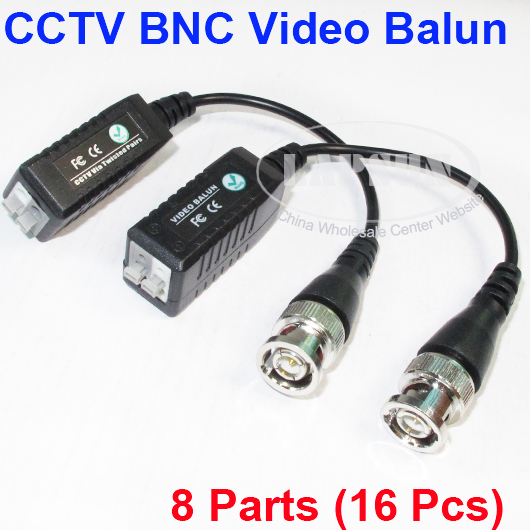

8 Pairs CCTV Passive Video Balun UTP Transivers BNC CAT5 Cable Connectors 103C
  • 8 Pairs CCTV Passive Video Balun UTP Transivers BNC CAT5 Cable Connectors 103C
  • 8 Pairs CCTV Passive Video Balun UTP Transivers BNC CAT5 Cable Connectors 103C
  • 8 Pairs CCTV Passive Video Balun UTP Transivers BNC CAT5 Cable Connectors 103C
  • 8 Pairs CCTV Passive Video Balun UTP Transivers BNC CAT5 Cable Connectors 103C

8 Pairs CCTV Passive Video Balun UTP Transivers BNC CAT5 Cable Connectors 103C

$33.75



  • Description
  • Reviews
  • Shipping & Returns

Feature:

  • 1 Channel passive video transceiver. Receiving and transmitting video signals over UTP cable without using the power supply.
  • Outstanding interference rejection,Transient protection,High quality image

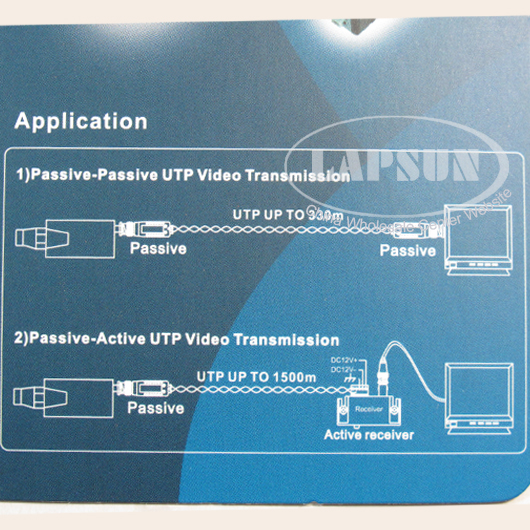

  • Full-motion CCTV video at distances up to 330m when used with any passive transceiver

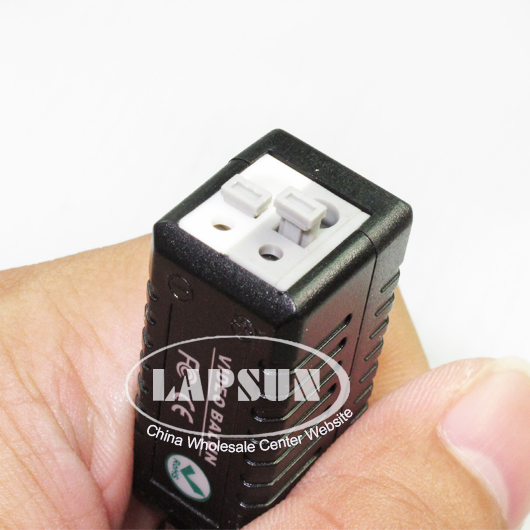

  • Press-Fit"terminal block
  • Up to 330 m with unshielded twisted pair wires
  • Up to 1500m with any active UTP video receiver
  • NTSC, PAL , and SECAM video formats, No power required
  • Wire Type: Unshielded Cat-5 or above twisted pair wire (The wire quality will directly affect the transmitted image effect and distance.)
  • 60 dB crosstalk and noise immunity
  • Compact size and easy installation
  • Compatible with all qualified UTP cameras

Specification:

  • Frequency response: DC to 8 MHz
  • Attenuation: 0.5dB typ
  • CMRR: 60 dB
  • Unshielded Twisted Pair: 24-16 AWG
  • Impedance: 100 ohms
  • Coax: 75 ohms
  • Category Type: 5 or better

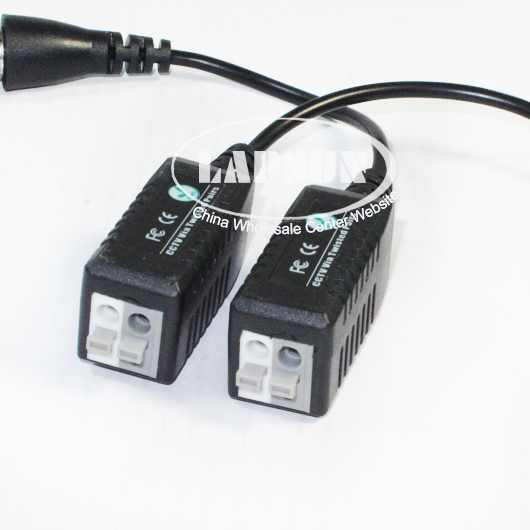

  • Video in/out Male BNC and "Press-Fit"terminal blocks
  • DC Loop Resistance: 52 ohms per 1,000 ft
  • Differential Capacitance: 19pF/ft max
  • Environmental Temperature: -10°C to +70°C
  • Storage: -30°C to +70°C
  • Humidity: 0 to 95%
  • Differential capacitance: 62pf/m (Maximum)
  • Dimensions: 39mm×16mm×19mm
  • Material: ABS Plastic
  • Weight: 26g

Packing including:

  • 8 Pairs (16 pcs)Passive CCTV Balun
