1 Pair CCTV Cat5 Passive Video Power UTP BNC Balun Transceiver Transmission B4

$11.75



  • Description
  • Reviews
  • Shipping & Returns



Feature:

  • Using UTP cable to transmit video,audio signal instead of co-axial
  • Longer transmission distance,>600meter
  • Lower budget,the price of UTP is much less than co-axial cable

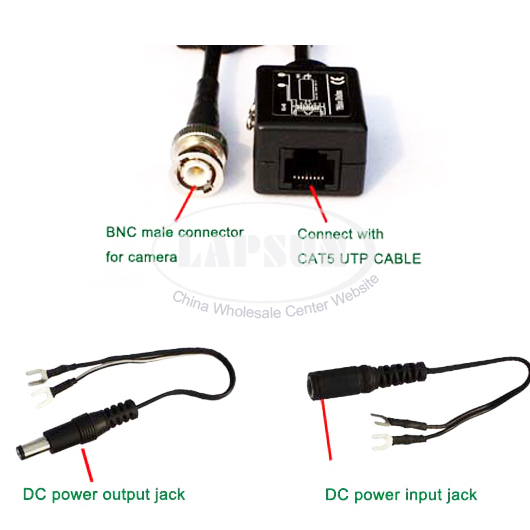

  • Easy installation,using the standard UTP cable system
  • Supper all video device,such as camera,monitor,DVR car,recorder,etc.

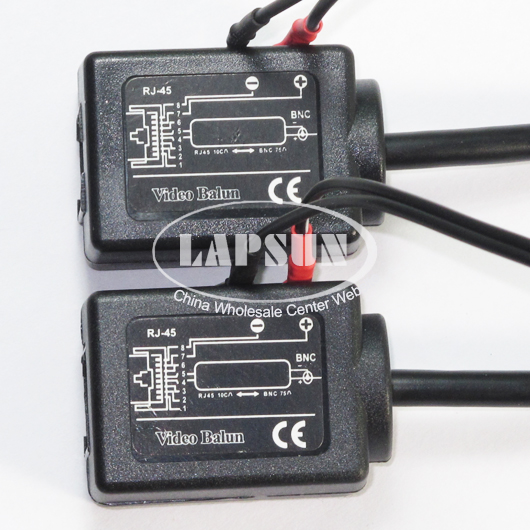

  • compatible with Local Area Network system,using pin 4,5 for video signal and pin 7,8 for power transmission

Specification:

  • Loss Ratio >2 dB
  • Rejection Ratio <15 dB
  • Interference >40 dB
  • Transmission Distance Color >600 meter
  • Transmission Distance B/W >750meter
  • BNC Resistance 75ohm
  • UTP Resistance 100ohm
  • Temperature 0~55C

Packing including:

  • 1 Pair Video Power Transceiver
