Wide Field 3D & 2D Parfocal Industry 180X C-Mount Lens 60FPS HDMI IMX385 V2 Camera Microscope Set

Wide Field 3D & 2D Parfocal Industry 180X C-Mount Lens 60FPS HDMI IMX385 V2 Camera Microscope Set


  • Description
  • Reviews
  • Shipping & Returns



Parfocal Wide field 2D&3D 2 mode zoom 5-180X C mount Lens + Ring LED light 4 Zones Control Box+ SONY IMX385 Sensor 1080P@60FPS HDMI Industrial Digital Camera





  • 1. The 3D industry lens based on infinity optical system

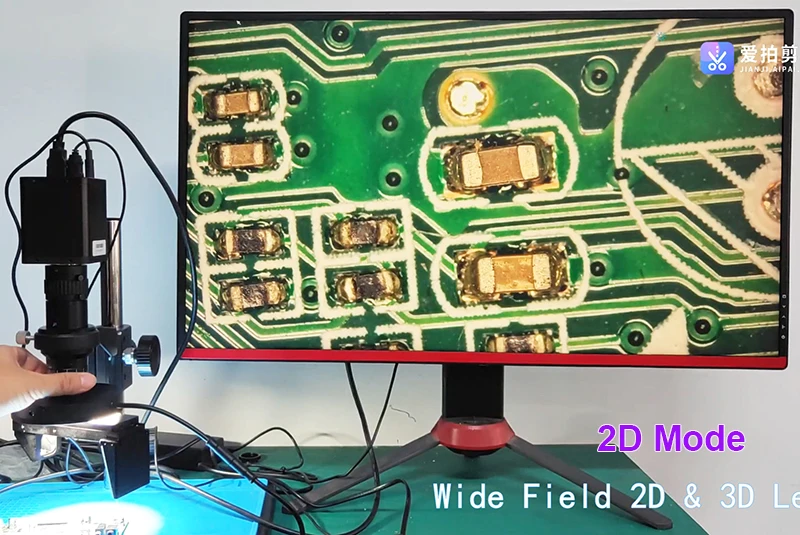

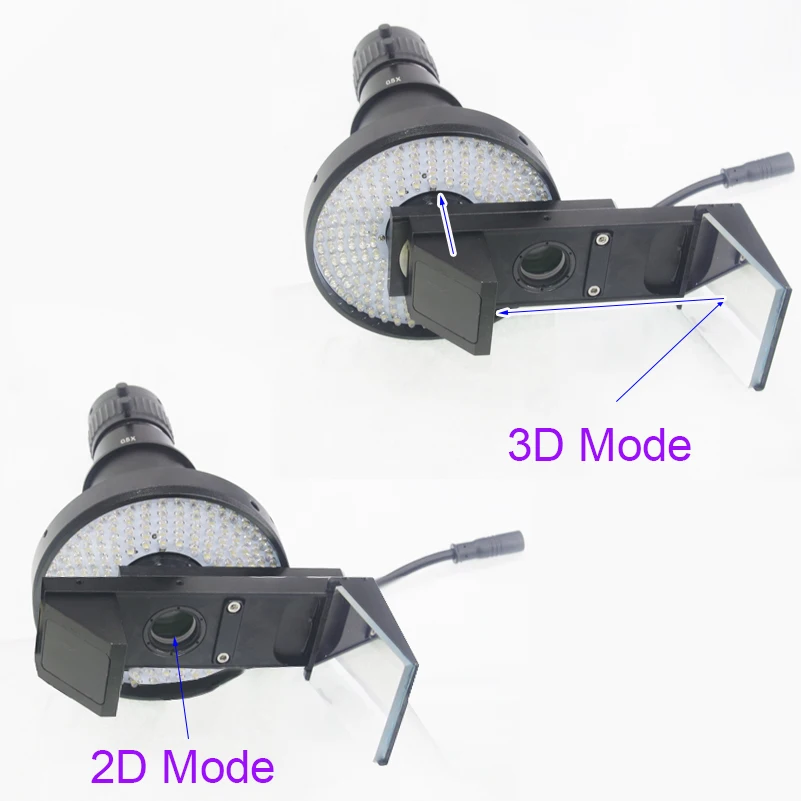

  • 2. It can manual swtich 2D and 3D observation, 360 degree rotation. When you swtich 2D to 3D Model, the working distance can keep at the same working distance.
  • 3. At mininum magnification, the field of view is full image without dark edge, high solution, and large depth of view.
  • 4. CCD adapter with fine-tuning device, it can match any CCD camera.
  • 5. Widely used in microelectronic, precision electrics, precision hardware, deep hole wall, life science, morphology
  • 6.Ring LED light 4 zones control
  • 7.Parfocal , Wide field , Long working distance



  • Working distance:
    2D model: 12CM
    3D model: 12CM
  • Field of view:
    2D model: 2mm-25mm
    3D model: 5mm-70mm
  • zoom c-mount Lens
  • 0.5X C-mount adapter
  • Objective Magnification Power by 0.6 - 5X
  • ALL Optical mag: 0.3X- 2.5X(about 5 - 180X on the display)
  • Size: 220mm(L) * 105mm


Digital Camera Feature:


  • High Quality, High Resolution, Clear Images
  • 1080P FULL HD 60FPS high speed camera
  • UI design menu, easy to control by mouse
  • Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
  • It build in digital crosshairs and color control, add line in the pictures
  • We sell much to the industy factory, then the works can see the problems directly in the Monitor.
  • Image Sensor : SONY IMX385 Colour CMOS
  • Menu : Fully digital UI design
  • Method of Operation : Mouse
  • Lens interface : C/CS-type
  • Power DC : DC12V
  • Output method : HDMI
  • White Balance : Auto / Manual / One-push control
  • Exposure : Auto / Manual
  • Display Frame rate : 1080P@60fps
  • Scanning method : Line by line scanning
  • Shutter Speed : 1/50s(1/60s)~1/10000s
  • Operating Temperature : 0℃~50℃
  • Digital Magnification / Zoom : Support
  • Saving function : Support U Disk Saving Photos and Videos
  • One (1) year manufacturer warranty


Package including :


  • 1 x 2D & 3D C-MOUNT Lens with LED Ring Light Control Box
  • 1 x IMX385 V2 Camera
  • 1 x HDMI Cable
  • 1 x USB Mouse
  • 1 x Power Adapter
  • 1 x Metal Stand
  • 1 x Heat Insulation Silicone Pad
