UNI-T UTi160A IR Infrared Thermal Imaging Image Camera DV Meter 2.5'' TFT
  • UNI-T UTi160A IR Infrared Thermal Imaging Image Camera DV Meter 2.5'' TFT
  • UNI-T UTi160A IR Infrared Thermal Imaging Image Camera DV Meter 2.5'' TFT
  • UNI-T UTi160A IR Infrared Thermal Imaging Image Camera DV Meter 2.5'' TFT
  • UNI-T UTi160A IR Infrared Thermal Imaging Image Camera DV Meter 2.5'' TFT
  • UNI-T UTi160A IR Infrared Thermal Imaging Image Camera DV Meter 2.5'' TFT

UNI-T UTi160A IR Infrared Thermal Imaging Image Camera DV Meter 2.5'' TFT

$2,899.00



  • Description
  • Reviews
  • Shipping & Returns

We will ship to yo by DHL/FED/ARAMEX/UPS express from HONGKONG and write lower value to avoid your import tax

Feature:

  • The size of radiation energy of object is related to surface temperature of objects.
  • Infrared radiation: in nature, all objects with temperature above absolute zero(-273C) with emit infrared radiation to the outside world.
  • Infrared detector: it's the device which can convert the change of amount of infrared radiation of measured object into power change, i.e. convert light signals into electrical signals.
  • Infrared thermal imager will focalize the infrared energy radiated from measured objects to infrared detector by optical devices.
  • After the infrared data which each pixel on detector receivers are processed, compare the pre-calibrated temperature data, convert them into standard video format and display, thus the process can be achieved that the heat distribution of measured objects is converted into infrared thermal map.
  • This infrared thermal map corresponds to the thermal distribution on the surface of measured objects.
  • The different colors on thermal images represent different temperatures of measured object.

Specification:

  • View field angle/Min. imaging distance: 20°x15°/0.1m(can select other lens)
  • Temperature Sensitivity: 0.08°C , 30°C
  • Detector Type: Uncooled Focal Plane Detector
  • Resolution: 160*120
  • Waveform Length: 8-14um
  • Focus: Manual adjustment
  • Spacial Resolution: 2.2mrad
  • Imaging Model: IR(iron red,anti-iron-red,black hot,white hot,colourful,feather red)
  • LCD Display: 2.5'' TFT LCD
  • Video Output: PAL(50Hz) or NTSC(60Hz)combined video
  • Temperature Range: -20°C~300°C
  • Accuracy: +-2°C or 2% readings
  • Temperature Measurement Model: The center point of measurement temperature or Full screen automatic catch Max./Min. temperature
  • Settings: Language/Time/Fake Color/Unit
  • Temperature Correction: Environment Temperature/Radiation rate/Humidity /Distance/Corrected Temperature
  • Memory Type: 2GB SD card, support Max.16GB
  • File format: .UIR
  • Alert Setting: Yes
  • Battery/Working hours: Li-battery/2.5 hours
  • Power Save Mode: Sleep Mode
  • Working environment temperature:-15°C to 50°C;
  • Storage temperature: -14°C to 70°C
  • Humidity: 95%
  • Water proof: IP54
  • Impact & Vibration resistance: 25G/2G
  • Net Weigh: <500g
  • Size: 172mm x 80mm x 162mm

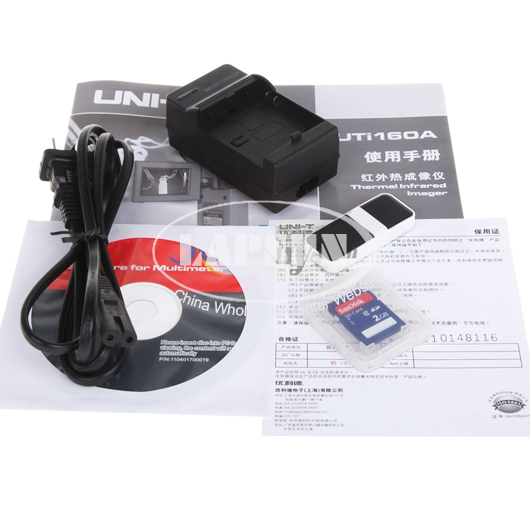

Packing including:

  • 1 x UTi160A Hand-Held IR Infrared Thermal Imager Imaging Camera
  • 1 x Charger
  • 1 x Battery
  • 1 x Memory Card
  • 1 x Card Reader
  • 1 x CD Software
  • 1 x User Maunal
  • 1 x Carry Case
