- 3.5X-90X zoom magnification power with crisp sharp images
- Super widefield high-eyepoint optics
- widefield of view
- 4" (100mm) working distance
- Sturdy all-metal pillar stand
- Powerful 144 LED ring light with dimmer
This stereo microscope has a 144-LED ring light that offers super widefield optics and 3.5X-90X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.
- An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light
- 3.5x-90x super wide zoom magnification power
- Bright cool light 144-LED illumination system
- High resolution with great flatness and contrast, giving sharp and clear images
- Binocular head with 45 degree inclined 360 degree swiveling eye tubes
- Sharp stereo erect images with a wide field of view
- Crystal clear original true color microscope images
- Dual eye tubes with adjustable diopters
- Large working distance
- Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome-plated mechanical components
- Adjustable interpupillary distance
- Rubber eye-guards included
- Head: 360 degree rotatable 45 degree inclined binocular
- Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
- Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses
- Working Distance: 4" (100mm)
- Diopter Adjustment: +/- 5dp
- Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
- Round Plate: 3-3/4" (95mm) in diameter
- Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
- Illumination: 144-LED Ring Light
- Power Input: 110-240V, 50-60HZ, Automatic Switching
- Accessories: Paired eye-caps
- High Quality, High Resolution, Clear Images
- Japan CMO
- TF Card Video Recorder
- Photo Model / Video Model

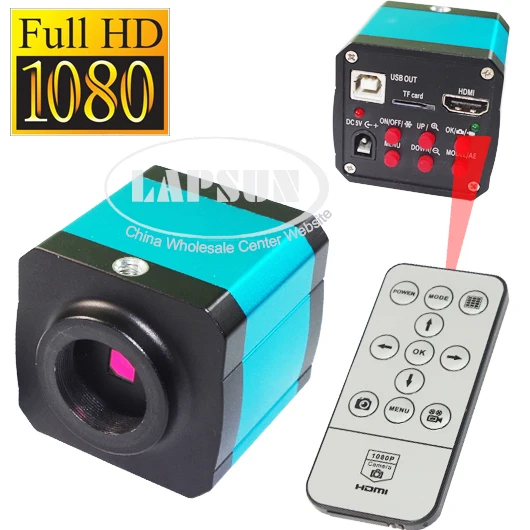

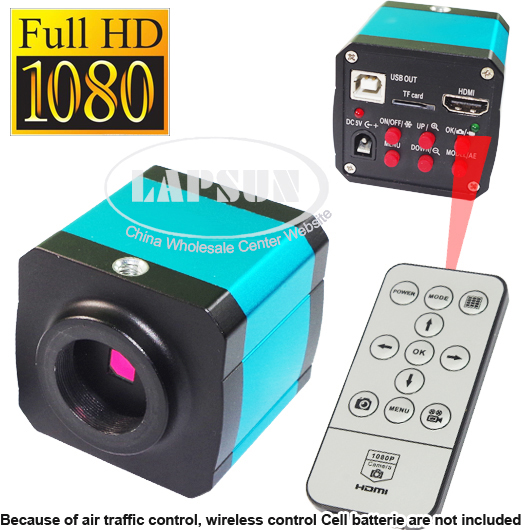

- Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
- It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negative，Compare function
- Supply USB2.0, HDMI HD video, Two output ports
- We sell much to the industy factory, then the works can see the problems directly in the Monitor.
- Model: Camera with HDMI USB2.0 two output
- Sensor: 14.0MP,1/2.8 inch (1080P FULL HD for HDMI output, 14MP for TF Image resolution )
- Image format: jpg
- Image resolution: 4320 * 2432 (for TF Card), 1920 *1080 (for USB)
- Video format: AVI
- 720P 1280*720@30FPS video recorde
- White Balance: Auto
- Light: Auto
- Color: Color
- Negative: Support
- Morror: Left/right,Up/Down
- Freeze: Support
- OSD: English/Chinese
- Line: different color,4 horizontal line , 4 vertical line,any positions

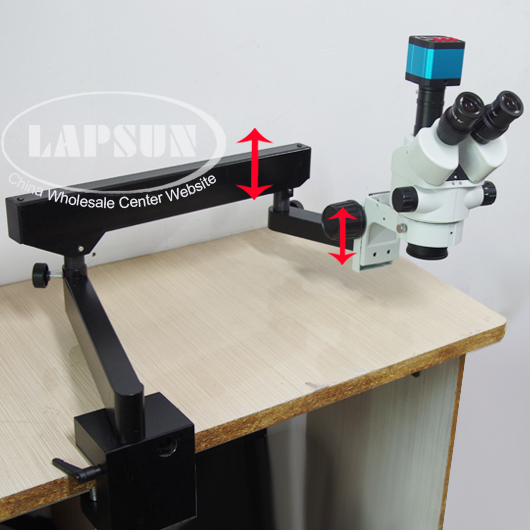

- This stand has a Three Arms system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
- The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board
- Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
- Steel Gears on Focusing Holder.
- Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm

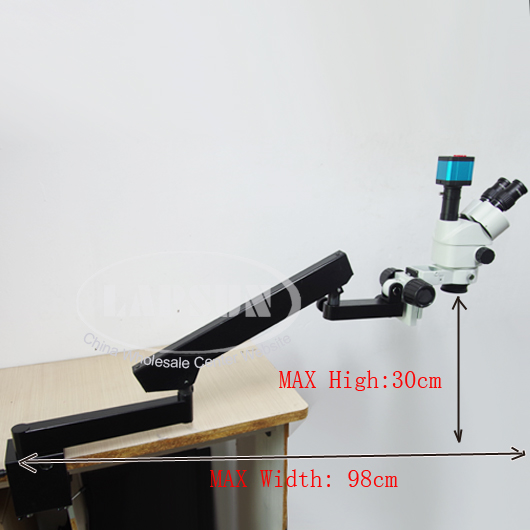

- Item size: see below picture
- Net Weight: about 8.8Kg

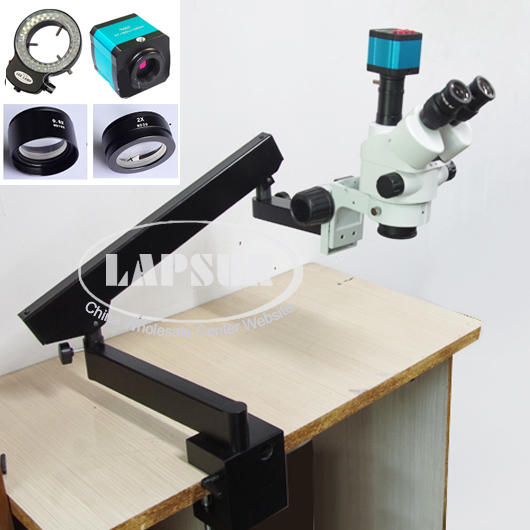

- 1 x Binocular Stereo Zoom Head
- 1 x Pair of Super Widefield 10X Eyepieces

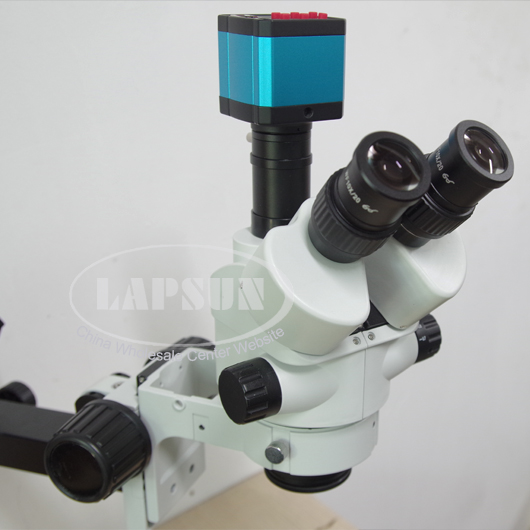

- 1 x 14MP HDMI camera with adaptor
- 1 x Binocular Zoom Microscope Head
- 1 x 56-LED Ring Light with Adapter (12V)
- 1 x Articulating Arm with a Clamp
- 1 x Focusing Rack
- 1 x C-mount Adapter
- 1 x Pair of Eye-Guards
- 1 x Pair of Clips
- 1 x Dust Cover
- 1 x SZM2.0X WD 30mm barlow lens
- 1 x SZM0.5X WD 177mm barlow lens
