Measuring 1080P HDMI VGA HD Industrial Microscope Camera 180X C-mount Lens Stand
  • Measuring 1080P HDMI VGA HD Industrial Microscope Camera 180X C-mount Lens Stand
  • Measuring 1080P HDMI VGA HD Industrial Microscope Camera 180X C-mount Lens Stand
  • Measuring 1080P HDMI VGA HD Industrial Microscope Camera 180X C-mount Lens Stand
  • Measuring 1080P HDMI VGA HD Industrial Microscope Camera 180X C-mount Lens Stand
  • Measuring 1080P HDMI VGA HD Industrial Microscope Camera 180X C-mount Lens Stand

Measuring 1080P HDMI VGA HD Industrial Microscope Camera 180X C-mount Lens Stand

$299.00



  • Description
  • Reviews
  • Shipping & Returns

10X-180X Full HD 1080P HDMI VGA Dual Output Industrial Microscope Camera Lens Support U Disk Storage Picture Mouse Operation
with Measure Function B22

Feature:

  • 1, HDMI and VGA output can work at the same time

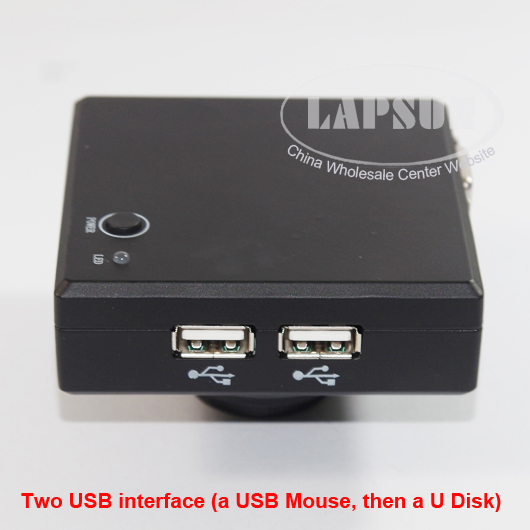

  • 2, Two USB interface (a USB mouse, then a U disk)
  • 3, The screen (picture) saved to the U disk, you can also browse the U disk in the picture. Red, green, blue, default, Chinese and English, vertical mirror, horizontal mirror, negative, with the screen contrast, automatic white balance, auto white balance, auto white balance, white balance, Line group, vertical line (8), horizontal line (8), line color, line width, and so on












Specification:

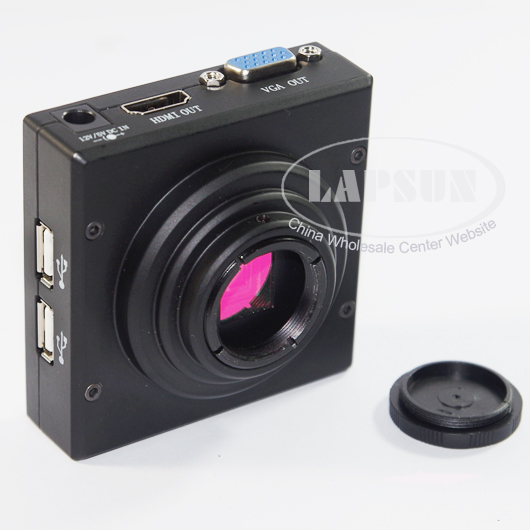

  • Sensor type: 2 million pixels, 1 / 2.5 "CMOS color
  • Effective pixels: 1920H * 1080V
  • Number of data bits: 10bit
  • Pixel size: 3.0 μm * 3.0 μm
  • Frame rate: 30 frames / sec
  • Sharpness: The maximum definition above 900TV lines
  • Scan mode: progressive
  • Shutter Type: Electronic Shutter
  • Dynamic range> 90dB
  • Signal to noise ratio: 55dB
  • Sensitivity: 2.0 V / lux-sec (550 nm)
  • Exposure method: manual / automatic
  • White Balance: Auto / Manual
  • Lens Interface: C / CS

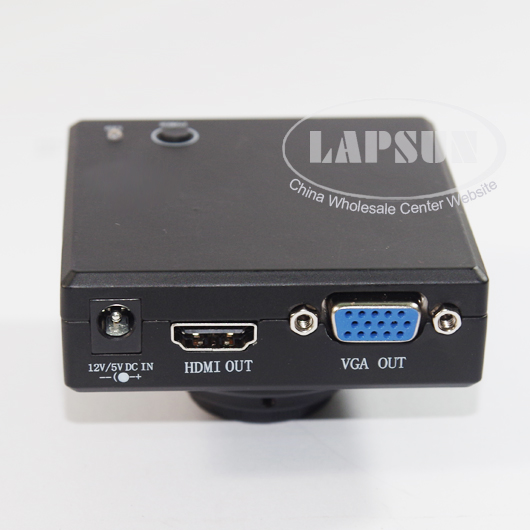

  • Video interface: standard HDMI interface, VGA interface
  • HDMI output resolution: 1920X1080 60Hz (HDMI default)

C-MOUNT Lens:

  • zoom c-mount Lens
  • 0.5X C-mount adapter
  • zoom ratios: 6.5:1
  • Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
  • Working distance: 95mm-180mm
  • View: 2.3mm - 28mm
  • Size: 168mm(L) * 50mm(DIA)
  • Weight: 450g

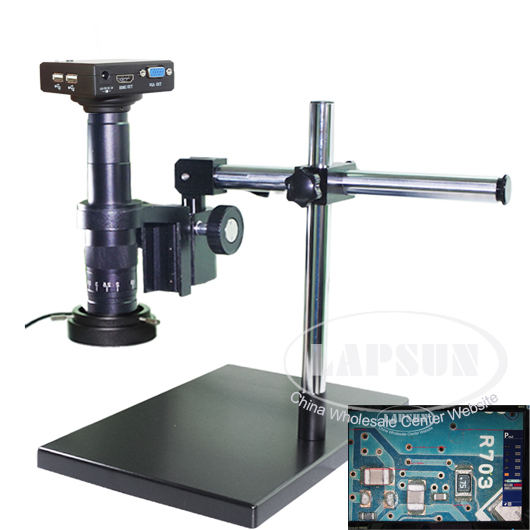

Stereo Table Stand Feature:

  • This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand. The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
  • Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
  • Steel Gears on Focusing Holder.
  • Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
  • Item size: see the 5th picture
  • Weight: 3.3kg

144 LED Adjustable Compact Microscope Ring Light:

  • 144 bright white LED bulbs
  • 100,000 hours of life
  • Intense and focused shadow-free illumination
  • The brightness of 0-100%Adjustable,high brightness
  • Variable intensity control
  • Power input: 100-240V, 50-60HZ
  • Suit for the dia of the lens: 30mm-63mm

Packing including:

  • 1 x Microscope Camera
  • 1 x HDMI Cable
  • 1 x Power Adapter (We will sent the right plug to your country)
  • 1 x Zoom C-mount Lens
  • 1 x Camera Stand
  • 1 x 144-LED Ring Light with Power Adapter (We will sent the right plug to your country)
