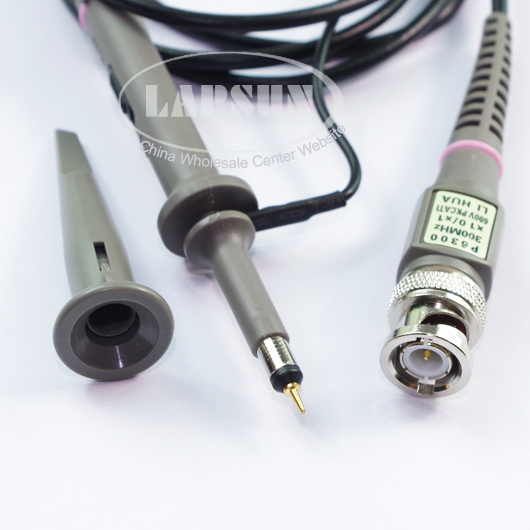

- The P6300 300 MHz Oscilloscope Probe Kit provides a probe tip, ground lead, several marker rings, tip locating sleeve, and adjustment tool. The probe is a passive, low-impedance attenuation probe.
- The probe has been designed and calibrated for use on instruments having an input impedance of 1MO paralleled by 20pF. It may also be recalibrated for use on instruments having an input capacitance of 15 to 40pF.
- The probe incorporates a two position (1X, 10X) slide switch in the compensating network and cable length of 1.2 meters.
- Temperature: -15°C to 70°C
- Attenuation: X1, X10
- Input Capacity: 85pF~115pF, 18.5pF~22.5pF
- Oscilloscope Input capacity: 15pF~40pF
- Input Resistance:
- Max input Voltage:
X1: <200V DC + Peak AC
X10: <600V DC + Peak AC
- Coaxial Cable: 1.2meter
- Weight: 70g
- 1 x 300MHZ Oscilloscope probes with Mini Alligator Clip and ground lead;
- 1 x Screwdrivers;
- 4 x Marker bands;
- 1 x Tip locating sleeves.
