1080P 60FPS SONY IMX385 V2 Black HDMI WDR Video Industry C-Mount Camera Microscope Set w Articulating Stand Clamp 0.75X Aux Lens 144 LED Ring Light

1080P 60FPS SONY IMX385 V2 Black HDMI WDR Video Industry C-Mount Camera Microscope Set w Articulating Stand Clamp 0.75X Aux Lens 144 LED Ring Light


  • Description
  • Reviews
  • Shipping & Returns



2023 Universal Rotable Articulating Clamp Arm Stand 7-150X Zoom Lens SONY IMX385 V2 Industry HDMI WDR Video Microscope Camera Support U Disk Saving Photos and Videos



Digital Camera Feature:


  • High Quality, High Resolution, Clear Images
  • 1080P FULL HD 60FPS high speed camera
  • UI design menu, easy to control by mouse
  • Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
  • It build in digital crosshairs and color control, add line in the pictures
  • We sell much to the industy factory, then the works can see the problems directly in the Monitor.

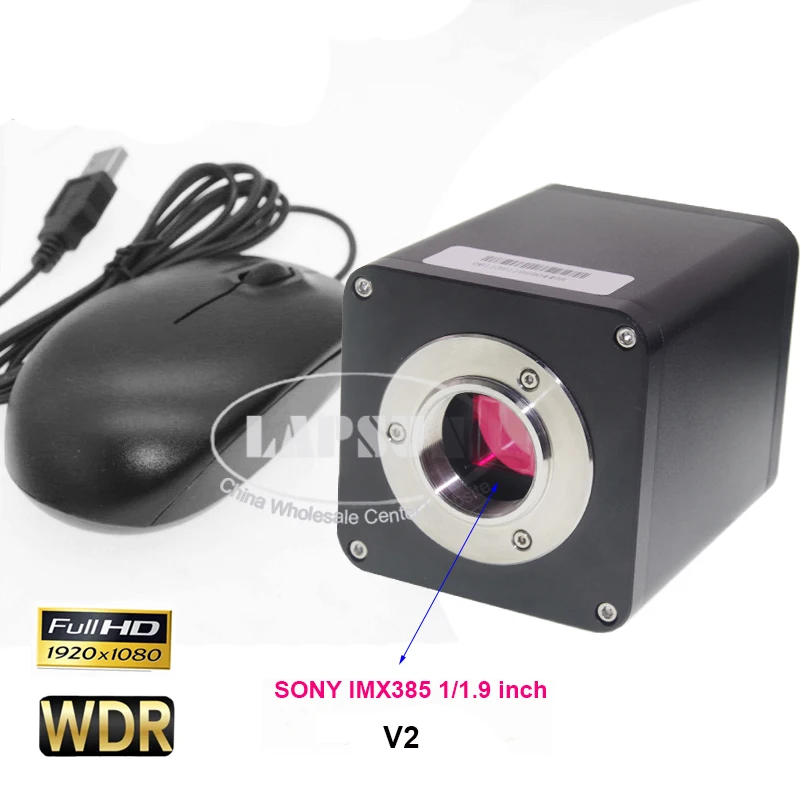

  • Image Sensor : SONY IMX385 Colour CMOS
  • Menu : Fully digital UI design
  • Method of Operation : Mouse
  • Lens interface : C/CS-type
  • Power DC : DC12V
  • Output method : HDMI
  • White Balance : Auto / Manual / One-push control
  • Exposure : Auto / Manual
  • Display Frame rate : 1080P@60fps
  • Scanning method : Line by line scanning
  • Shutter Speed : 1/50s(1/60s)~1/10000s
  • Operating Temperature : 0℃~50℃
  • Digital Magnification / Zoom : Support
  • Saving function : Support U Disk Saving Photos and Videos





  • Working distance:100mm (when using 0.35X Auxiliary objective Working distance:190mm)
  • Connector:CS C mount
  • Zoom:continouasly variable zoom
  • Objective Magnification:0.7X - 4.5X(about 10 - 180X on the display )
  • Eyepiece lens adapter:0.5X
  • Fixed position:35mm
  • Locking:0.7X - 4.5X Locking
  • Thread: 42mm
  • Auxiliary Objective Lens:0.75X (Work Diatace: 12-13CM, Visual field: 3m-34mm) , 0.5X (Work Diatace: 17CM-24CM, Visual field: 4m-50mm)
  • Size:180mm(L) * 50mm(DIA)



144 Bulbs Microscope LED Ring Light:


  • 144 bright white LED bulbs
  • 100,000 hours of life
  • Intense and focused shadow-free illumination
  • The brightness of 0-100%Adjustable,high brightness
  • Variable intensity control
  • Power input: 100-240V, 50-60HZ
  • Suit for the dia of the lens: 30mm-63mm

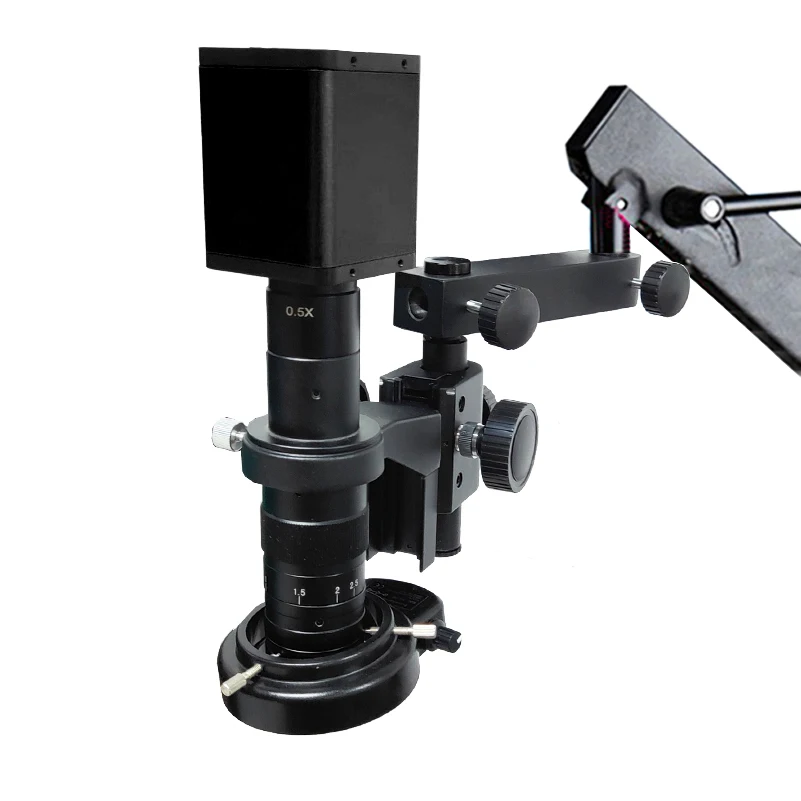

Universal Stand Feature:


  • Expand the scope of operations,any orientation and angle observed the objectives.
  • Vertical Height : 400mm
  • Horizontal Distance:770mm
  • Base size: 98x80x116mm
  • Max Clamp:50mm
  • Steel Gears on Focusing Holder.
  • Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm,Connection diameter of 16mm.
  • Column(option) height: 330mm





NO.1 SET Package including(not include Column):


  • 1 x Microscope Camera
  • 1 x Power supply(AU/EU)
  • 1 x HDMI Cable
  • 1 x USB Mouse
  • 1 x 10-180X C-MOUNT Lens
  • 1 x 144 LED Ring Light
  • 1 x Ring Adapter
  • 1 x Articulating Arm Clamp Microscope Bracket (not include Column)
  • 1 x 0.75X Auxiliary Objective Lens
  • 1 x 0.5X Auxiliary Objective Lens
